Section 67 (Entertainment): Audio: Removal

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the console box. < Ref. to REMOVAL , Console Box. >
  3. Remove the console front panel. < Ref. to REMOVAL , Center Console. >
  4. Remove the console side garnish. < Ref. to REMOVAL , Center Console. >

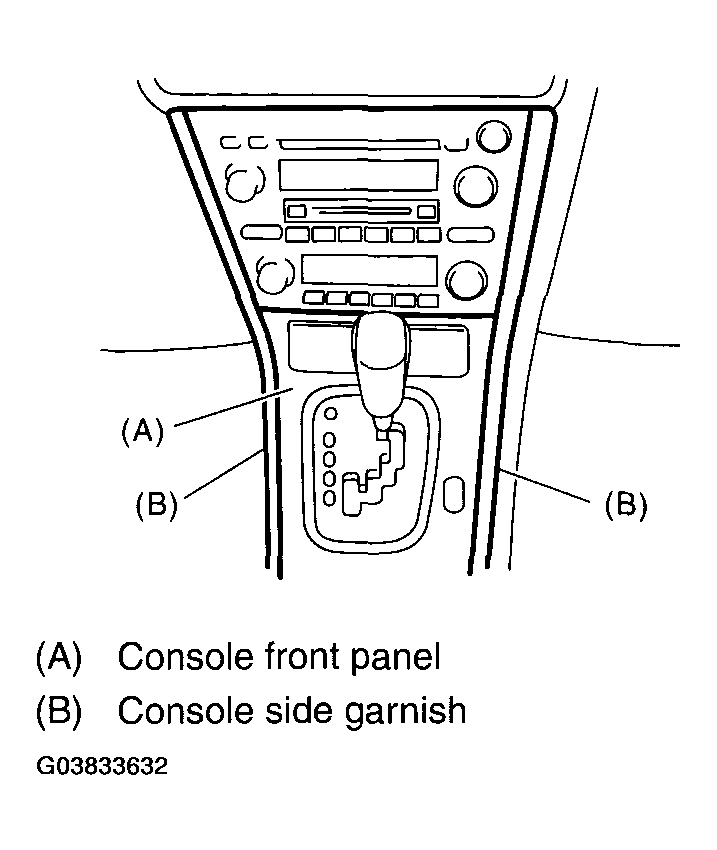

    Fig 1: Removing Console Side Garnish
    G03833632Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the screws, and slightly pull the audio out from center console.

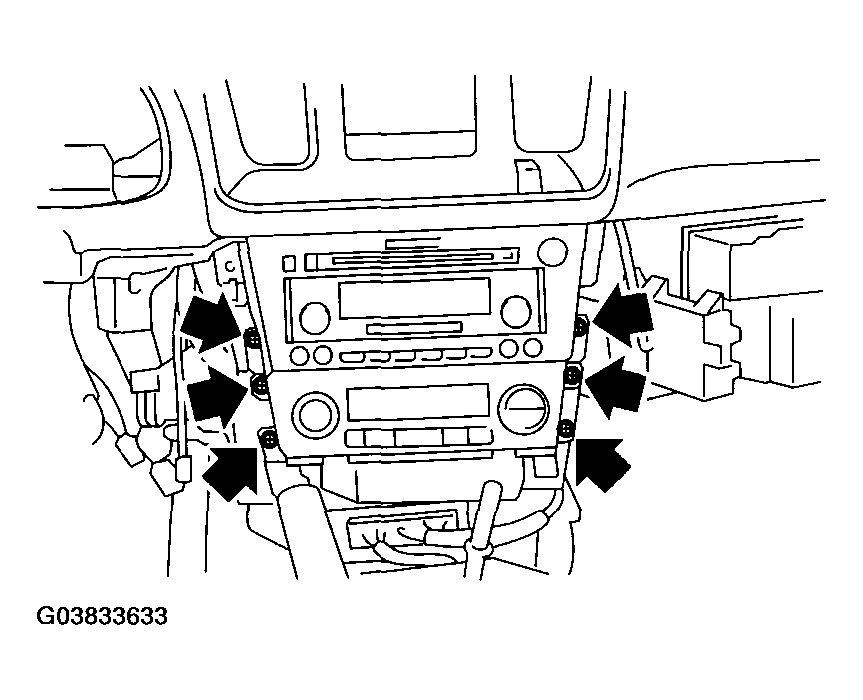

    Fig 2: Removing Screws
    G03833633Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the harness connector and antenna feeder cord, and then remove the audio.
