Console Box: Removal

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the parking brake lever cover.

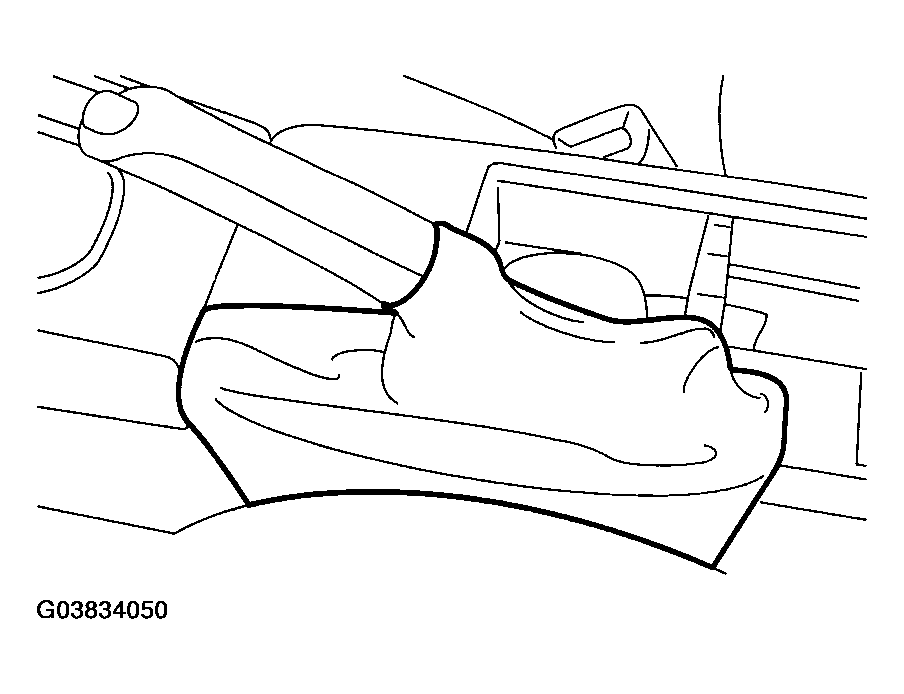

    Fig 1: Removing Parking Brake Lever Cover
    G03834050Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolts and clips.

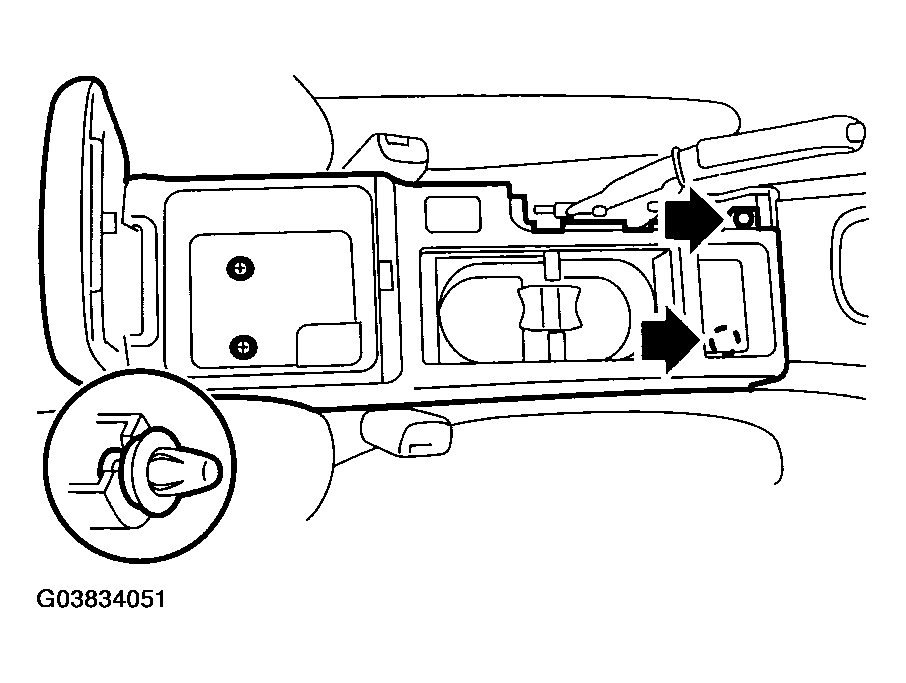

    Fig 2: Removing Bolts And Clips
    G03834051Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector, and remove the console box.
