Drive Pinion Shaft: Installation

  1. Assemble the drive pinion assembly to the oil pump housing.
    NOTE:
    • Pay attention not to bend the shim.
    • Pay attention not to press the pinion into housing bore.
    1. Tightening torque: 40 N.m (4.0 kgf-m, 30 ft-lb)

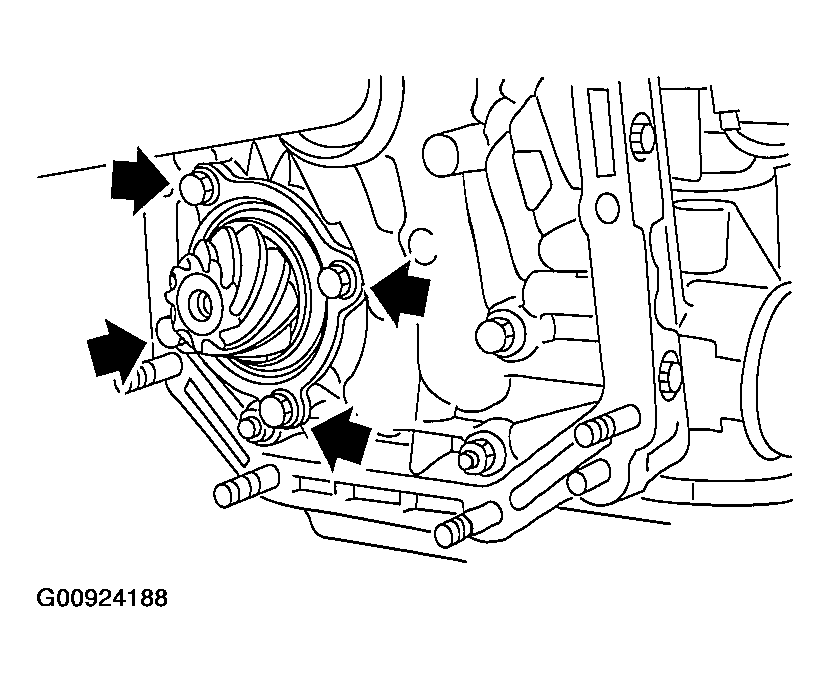

    Fig 1: Installing Drive Pinion Assembly To Oil Pump Housing
    G00924188Courtesy of SUBARU OF AMERICA, INC.
  2. Combine the torque converter case with the transmission case. Refer to INSTALLATION .
  3. Install the reduction driven gear.

    Refer to INSTALLATION .

  4. Install the reduction drive gear. (MPT model) Refer to INSTALLATION .
  5. Install the center differential carrier. (VTD model) Refer to INSTALLATION .
  6. Combine the extension case with the transmission case, and install vehicle speed sensor 1 (rear).

    Refer to INSTALLATION .

  7. Insert inhibitor switch and transmission connector into stay.
  8. Install the oil cooler inlet and outlet pipes. Refer to INSTALLATION .
  9. Install the oil charger pipe with O-ring.

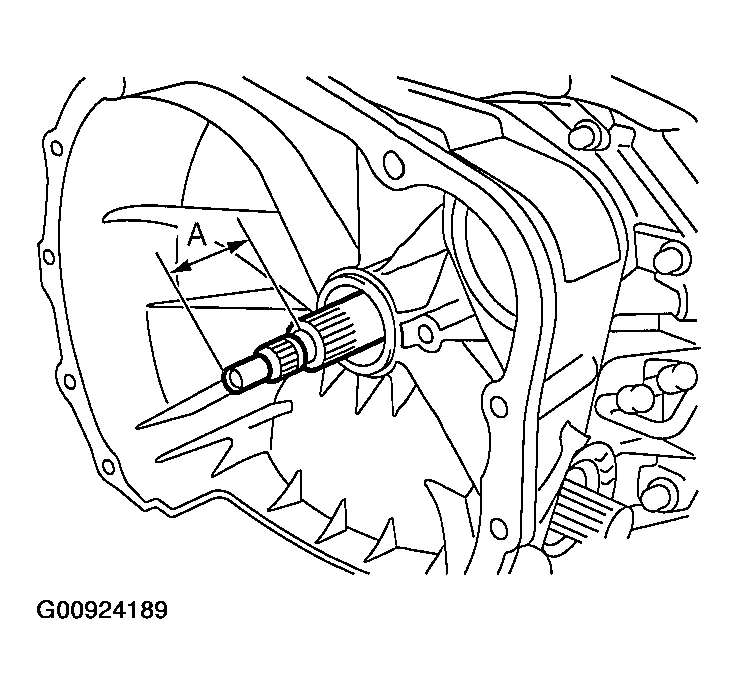

  10. Insert the input shaft while turning lightly by hand and verify the protrusion amount.
    1. Normal protrusion A: 50 - 55 mm (1.97 - 2.17 in)
    Fig 2: Installing Oil Charger Pipe With O-Ring
    G00924189Courtesy of SUBARU OF AMERICA, INC.
  11. Install the torque converter clutch assembly.

    Refer to INSTALLATION .

  12. Install the transmission assembly to vehicle.

    Refer to INSTALLATION .
