Switch Back Gate: Disassembly

  1. Remove switch back gate. Refer to REMOVAL  , SWITCH BACK GATE  .
  2. Remove switch back gate inner cover.

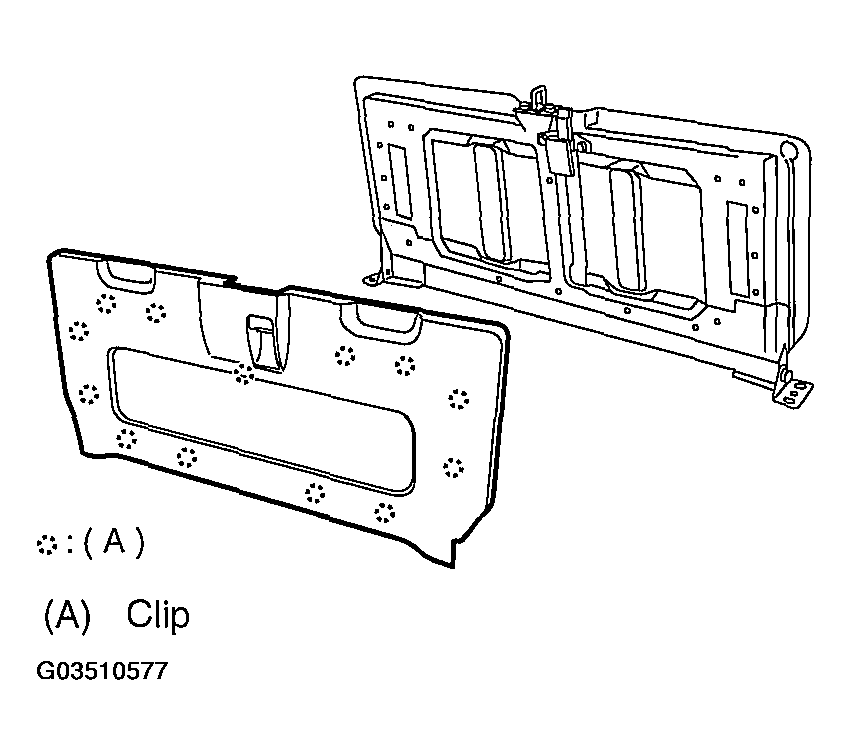

    Fig 1: Removing Switch Back Gate Inner Cover
    G03510577Courtesy of SUBARU OF AMERICA, INC.
  3. Remove switch back gate handle and striker.

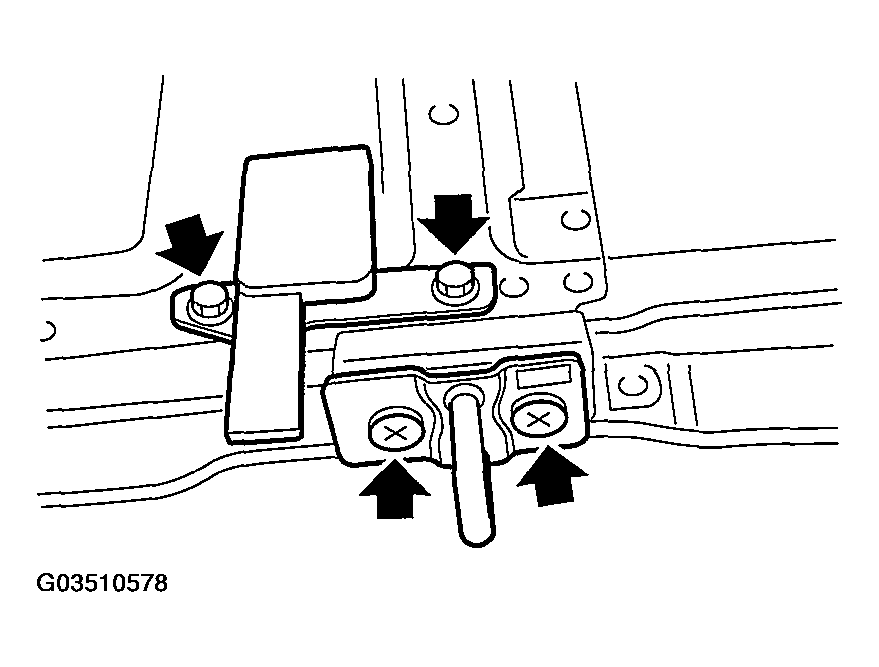

    Fig 2: Removing Switch Back Gate Handle & Striker
    G03510578Courtesy of SUBARU OF AMERICA, INC.
