Switch Back Gate: Removal

  1. Pull up rear seat cushion, put down rear seat backrest.
  2. Remove floor trim panel.

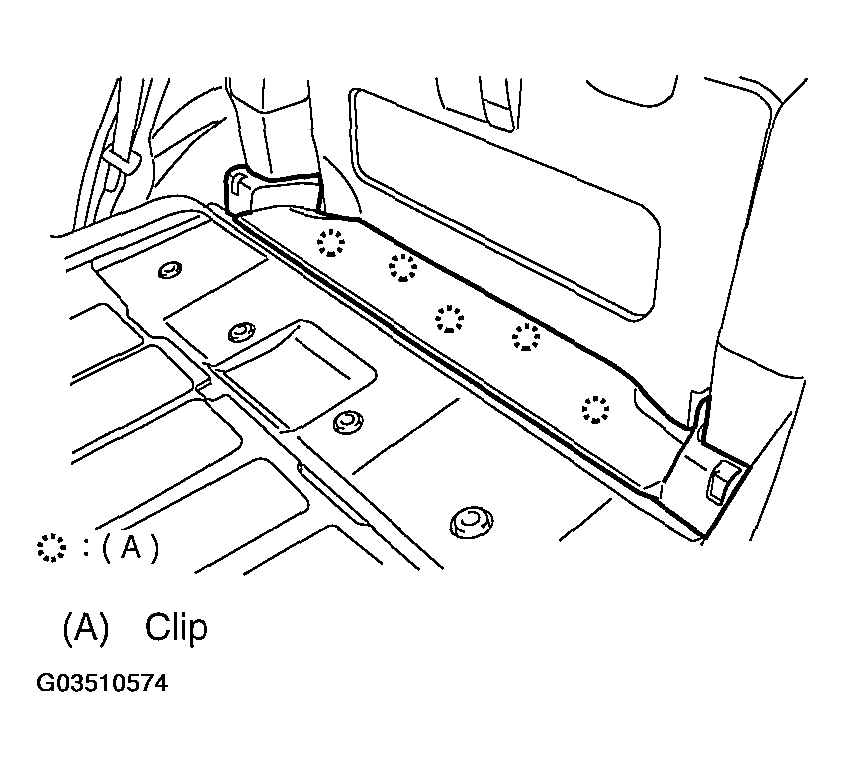

    Fig 1: Removing Floor Trim Panel
    G03510574Courtesy of SUBARU OF AMERICA, INC.
  3. Remove bolts, and detach switch back gate.

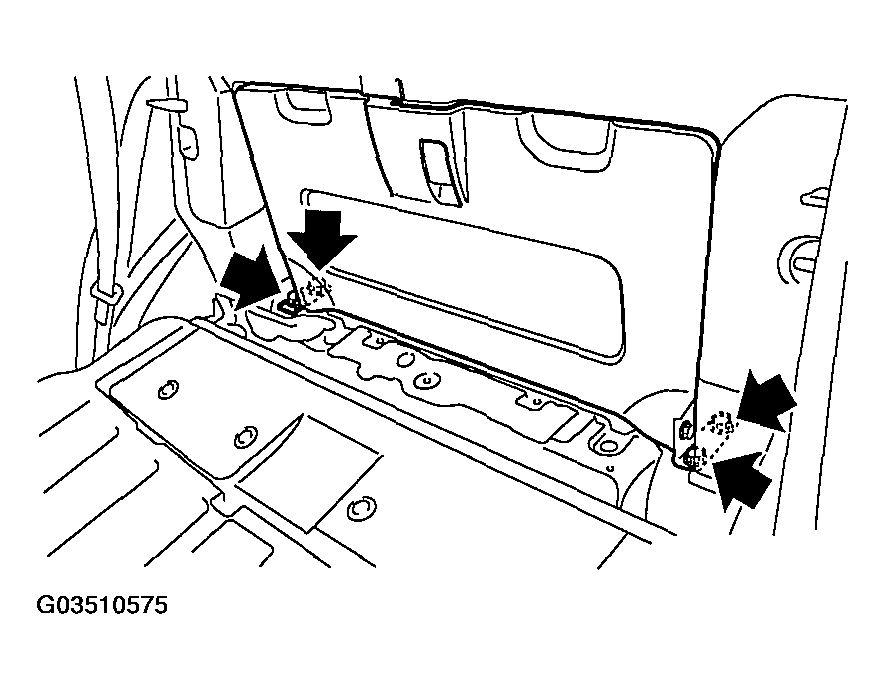

    Fig 2: Detaching Switch Back Gate
    G03510575Courtesy of SUBARU OF AMERICA, INC.
  4. Remove weatherstrip.
