Universal Joint: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Center of roll connector may also be known as clockspring connector.
  1. Remove the steering wheel. See REMOVAL  , Steering Wheel.
  2. Remove the universal joint bolts and then remove the universal joint.
    CAUTION: Scribe alignment marks on universal joint so that it can be reassembled at the original serration.

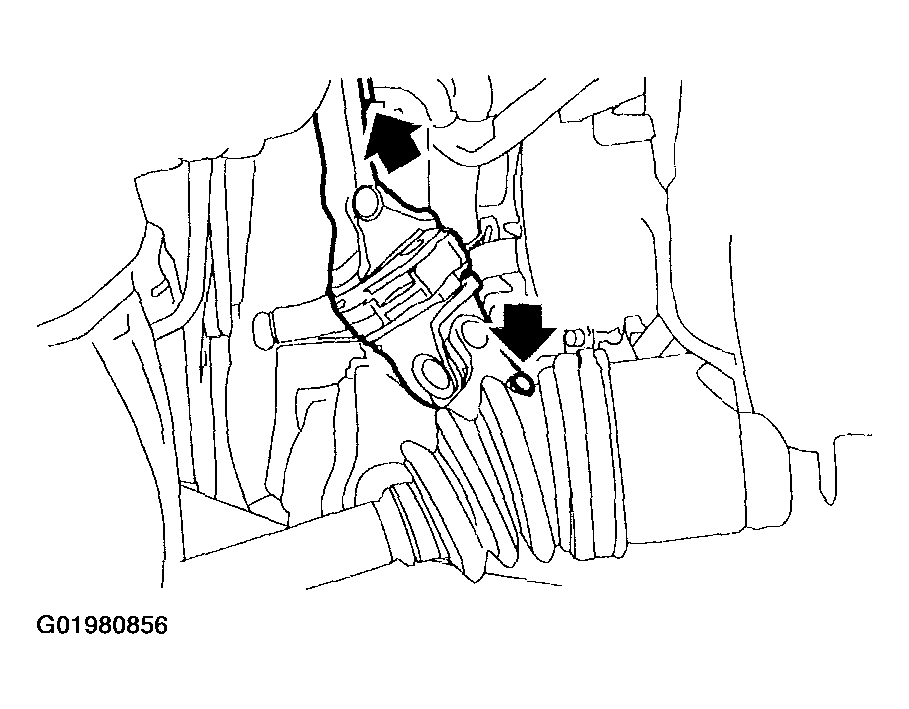

    Fig 1: Removing Universal Joint
    G01980856Courtesy of SUBARU OF AMERICA, INC.
