Steering Wheel: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Center of roll connector may also be known as clockspring connector.
  1. Disconnect the ground terminal from battery.
  2. Set the tires to straight-ahead position.
  3. Remove the AIRBAG module. See REMOVAL & INSTALLATION .
    WARNING: Always refer to "Air Bag System" before performing AIRBAG module service. See AIR BAG RESTRAINT SYSTEMS .
  4. Remove the steering wheel nut, and then draw out the steering wheel from the shaft using steering puller.
    NOTE: Make the matching marks on the steering wheel and steering column in advance.

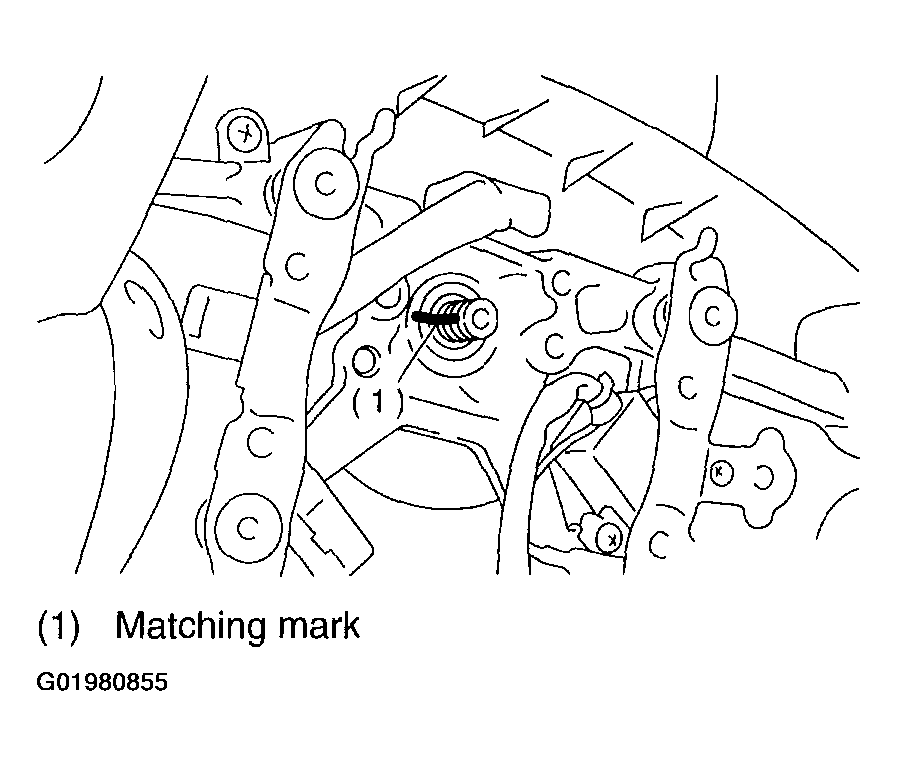

    Fig 1: Removing Steering Wheel Nut
    G01980855Courtesy of SUBARU OF AMERICA, INC.
