Front Door Latch Assembly: Removal

  1. Disconnect ground cable from battery.
  2. Remove the front door trim. < Ref. to REMOVAL , Front Door Trim.>
  3. Remove the sealing cover. < Ref. to REMOVAL , Front Sealing Cover.>
  4. Remove the front inner remote. < Ref. to REMOVAL , Front Inner Remote.>
  5. Remove the front door glass. < Ref. to REMOVAL , Front Door Glass.>
  6. Remove three nuts, and detach the front door sash (Rear).
  7. Remove the three screws and bolt.

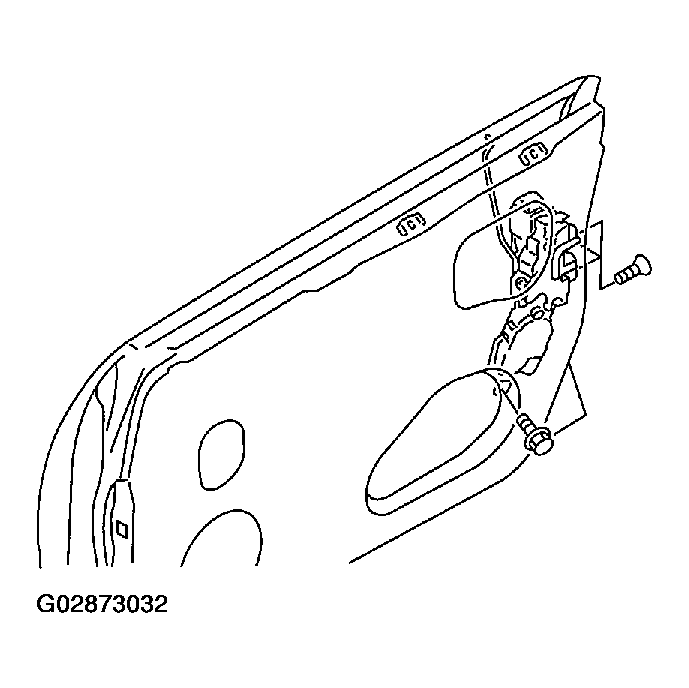

    Fig 1: Removing Screws & Bolt
    G02873032Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the connector. Remove the front door latch assembly.
