Front Inner Remote: Removal

  1. Remove the door trim. < Ref. to REMOVAL , Front Door Trim.>
  2. Remove the sealing cover. < Ref. to REMOVAL , Front Sealing Cover.>
  3. Remove the two rod joints.
  4. Remove the screw, and detach the front inner remote.

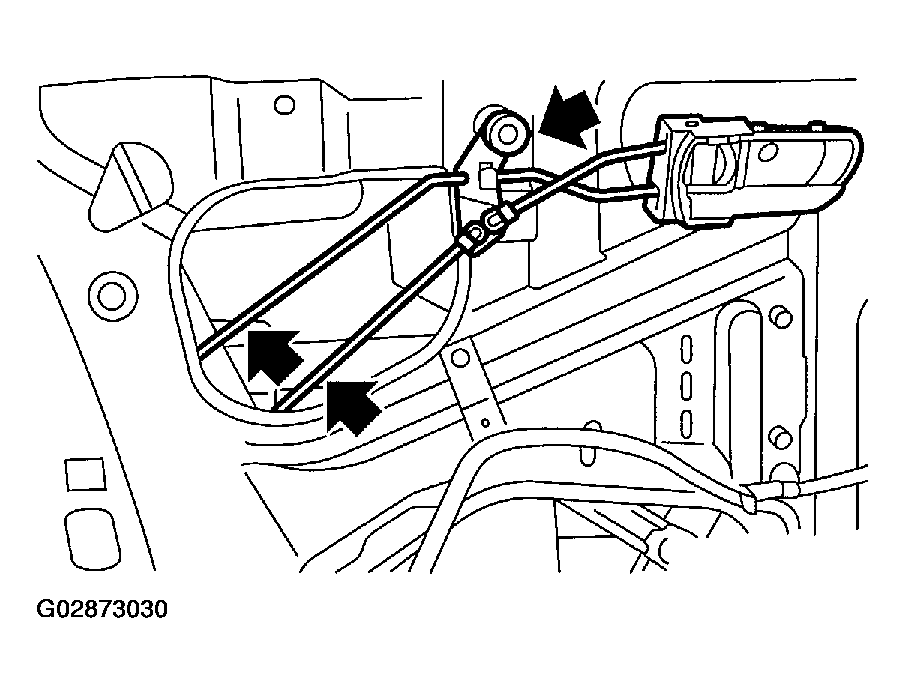

Fig 1: Detaching Front Inner Remote
G02873030Courtesy of SUBARU OF AMERICA, INC.
