Extension Case: Removal

  1. Remove the transmission assembly. See REMOVAL , Automatic Transmission Assembly.
  2. Remove the rear wheel speed sensor.

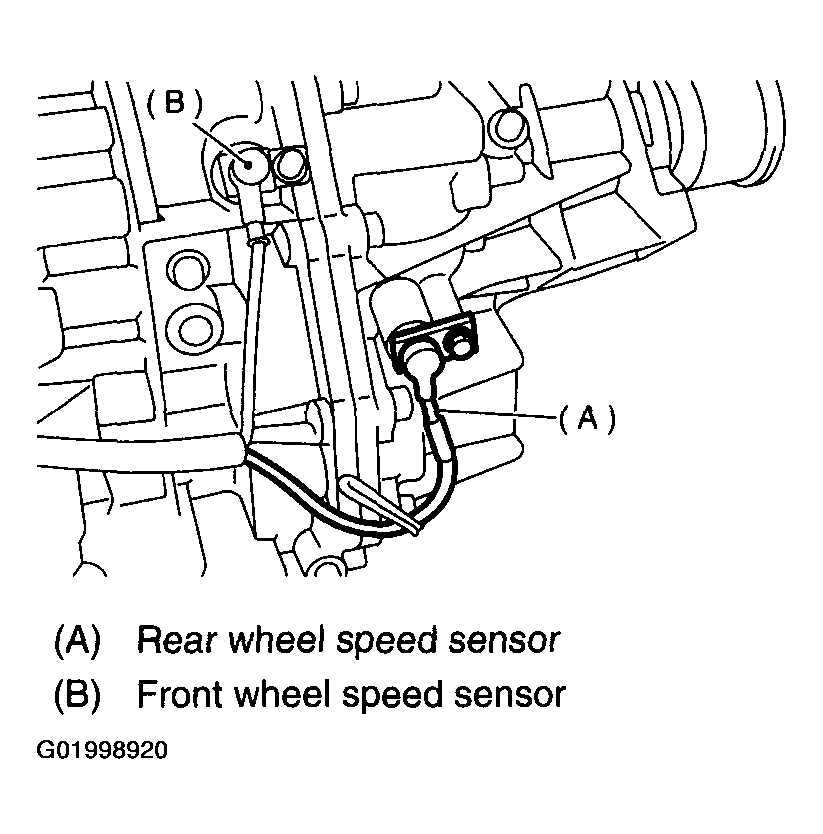

    Fig 1: Removing Rear Wheel Speed Sensor (MPT Model)
    G01998920Courtesy of SUBARU OF AMERICA, INC.

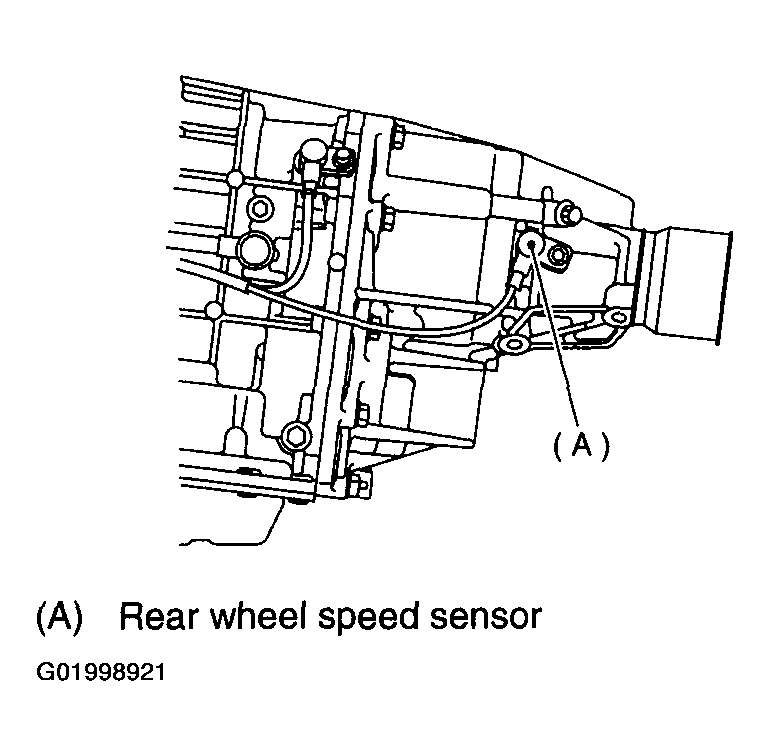

    Fig 2: Removing Rear Wheel Speed Sensor (VTD Model)
    G01998921Courtesy of SUBARU OF AMERICA, INC.
  3. Separate transmission case and extension case sections.

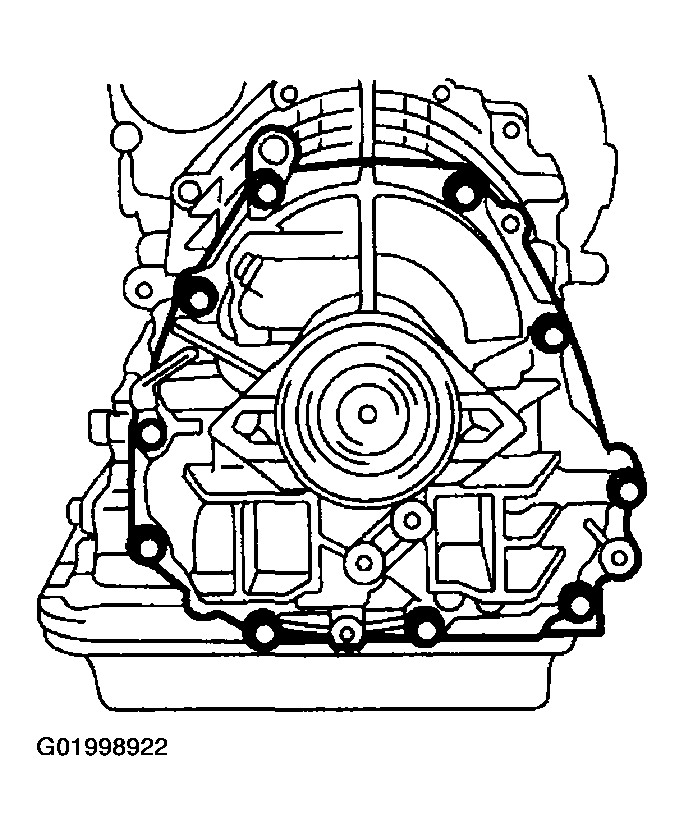

    Fig 3: Separating Transmission Case & Extension Case Sections
    G01998922Courtesy of SUBARU OF AMERICA, INC.
