Extension Case Oil Seal: Replacement

  1. Clean the transmission exterior.
  2. Drain the ATF completely.
  3. Replace the gasket with a new one, and then tighten the ATF drain plug.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

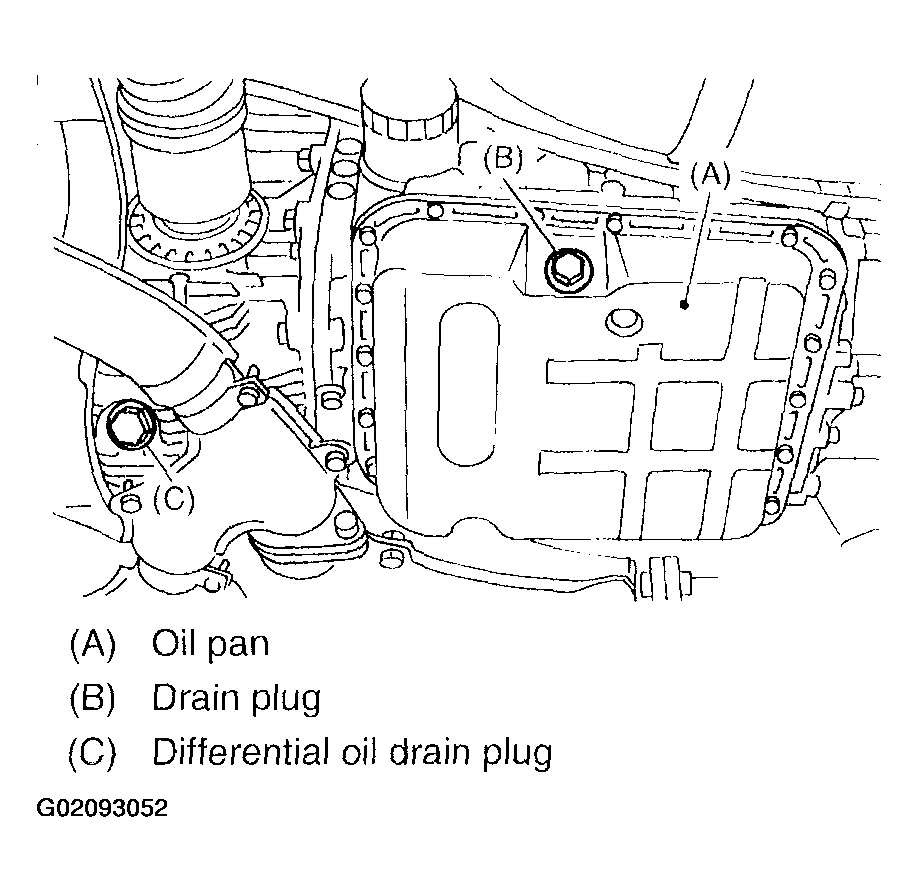

    Fig 1: Tightening ATF Drain Plug
    G02093052Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the rear exhaust pipe and muffler. Refer to REMOVAL , Rear Exhaust Pipe and REMOVAL , Muffler.
  5. Remove the heat shield cover.
  6. Remove the propeller shaft.
  7. Using the ST, remove the oil seal.

    ST 398527700 PULLER ASSY

  8. Using the ST, install the oil seal.

    ST 498057300 INSTALLER

  9. Install the propeller shaft.
  10. Install the heat shield cover.
  11. Install the rear exhaust pipe and muffler.

    Refer to INSTALLATION , Rear Exhaust Pipe and INSTALLATION , Muffler.

  12. Pour ATF and check the ATF level. Refer to AUTOMATIC TRANSMISSION FLUID .
