Engine Mechanical: Exhaust: Muffler: Removal

Separate the muffler from rear exhaust pipe.
CAUTION: Be careful, the exhaust pipe is hot.

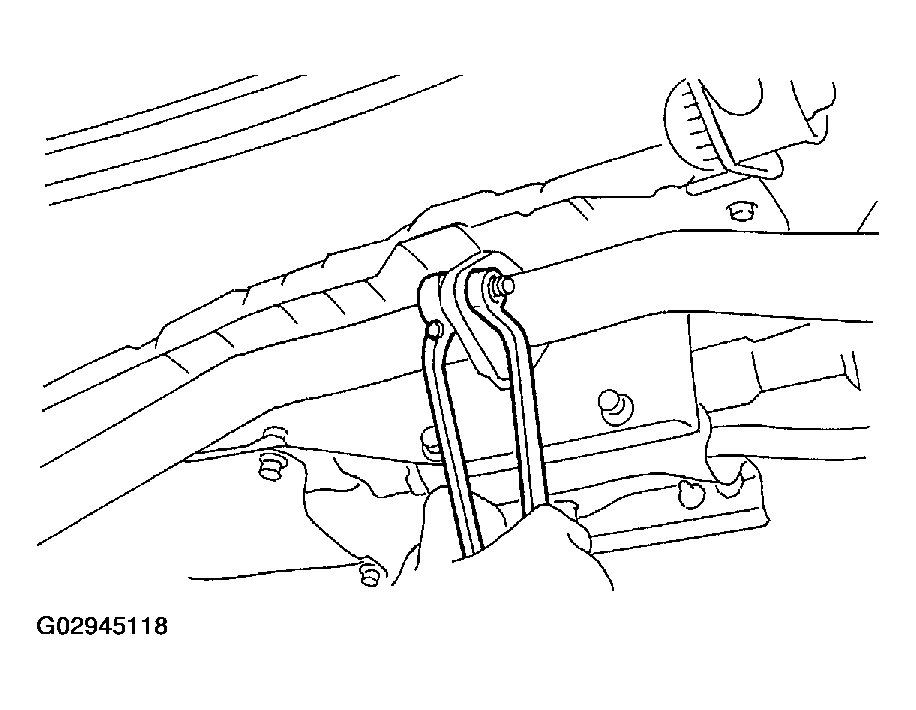

Fig 1: Removing Muffler From Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Apply a coat of SUBARU CRC to mating area of the cushion rubbers in advance.
SUBARU CRC (Part No. 004301003)

Fig 2: Applying Coat Of Subaru CRC To Mating Area Of Cushion Rubbers
Courtesy of SUBARU OF AMERICA, INC.
Remove the front, right and left cushion rubber, and detach the muffler assembly.
