Front Bumper: Removal

CAUTION:

Handle bumper carefully to avoid damage to bumper face.
Do not damage body during removal or installation of bumper.
To avoid damage to bumper, lay removed bumper on sheet spread on the floor. Do not lay it directly on the floor.

Disconnect ground cable from battery.
Remove front fog light. Refer to REMOVAL , Front Fog Light Assembly.
Remove the front grille. Refer to REMOVAL , Front Grilles.
Remove the extension of both sides.

Fig 1: Removing Extension Of Both Sides
Courtesy of SUBARU OF AMERICA, INC.
Remove the seven clips and then detach plate (A).

Fig 2: Removing Clips & Detaching Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove under cover. Refer to REMOVAL , Front Under Cover.
Remove the seven clips from under side of bumper.

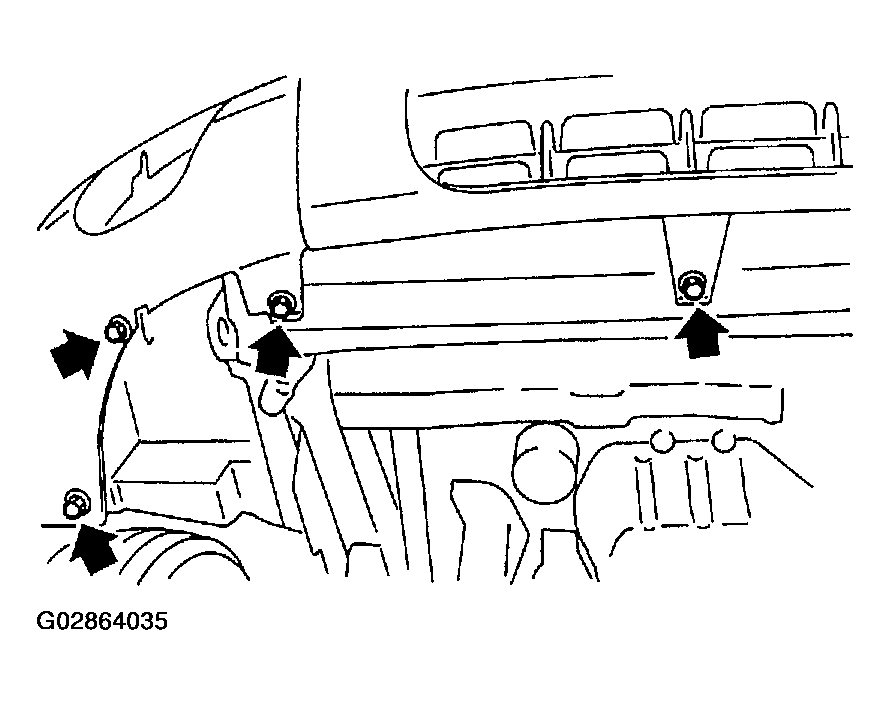

Fig 3: Removing Clips From Under Side Of Bumper
Courtesy of SUBARU OF AMERICA, INC.
Turn over the front mud guard of the front portion and then remove bolt.

Fig 4: Removing Front Mud Guard Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove bumper face and E/A foam.
Remove the four bolts and then detach 1 back beam.

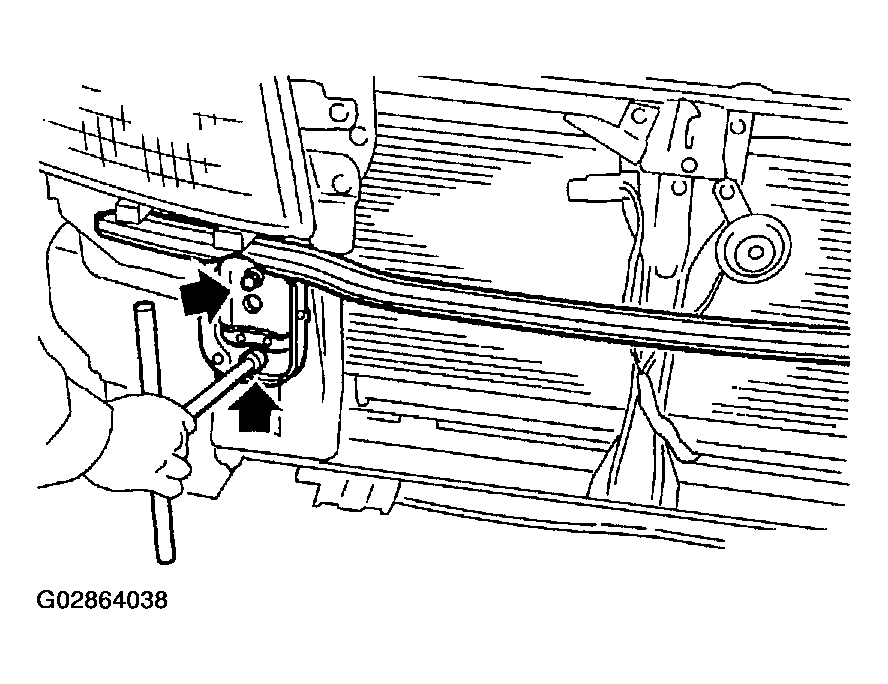

Fig 5: Removing Bolts & Detaching Back Beam
Courtesy of SUBARU OF AMERICA, INC.
Remove the four bolts and then detach the beam upper.

Fig 6: Removing Bolts & Detaching Beam Upper
Courtesy of SUBARU OF AMERICA, INC.
