Front Grille: Removal

  1. Open hood.
  2. Remove the four upper clips from the body panel. Push the part shown in the figure by using a screwdriver while lightly pulling the front grille.

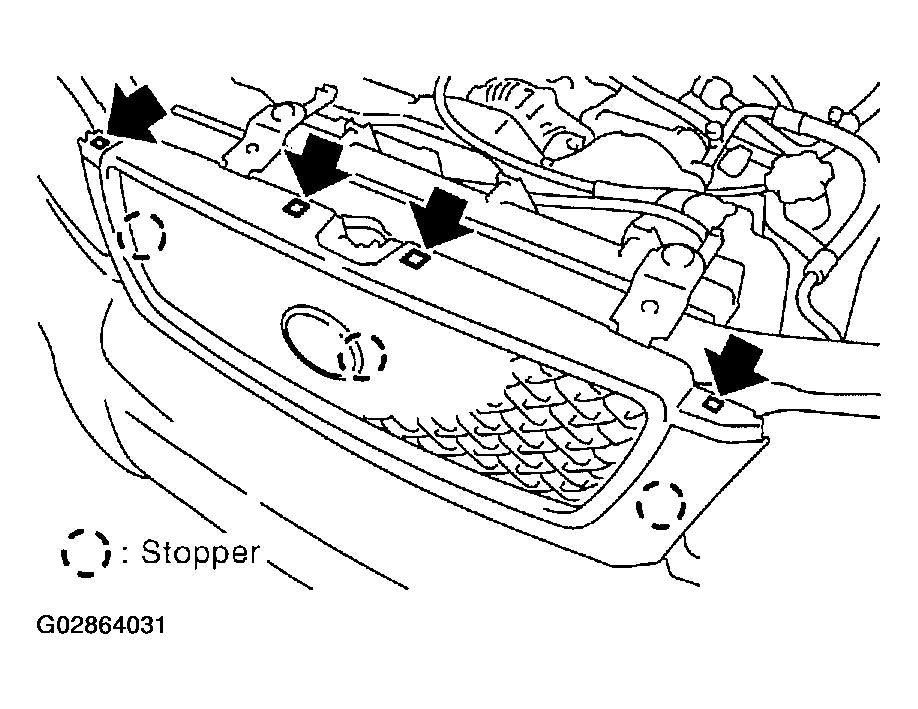

    Fig 1: Removing Upper Clips From Body Panel
    G02864031Courtesy of SUBARU OF AMERICA, INC.
