Operating Cylinder: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner case and air intake duct.
(Except U5 model) Refer to REMOVAL , Air Cleaner Case and REMOVAL , Air Intake Duct.
Remove the air intake chamber and air intake duct. (U5 model) Refer to REMOVAL , Air Intake Chamber and REMOVAL , Air Intake Duct.
Remove the intercooler. Refer to REMOVAL , Intercooler.
Remove the clutch hose from operating cylinder.
NOTE: Cover the hose joint to prevent clutch fluid from flowing out.
- Non-TURBO model

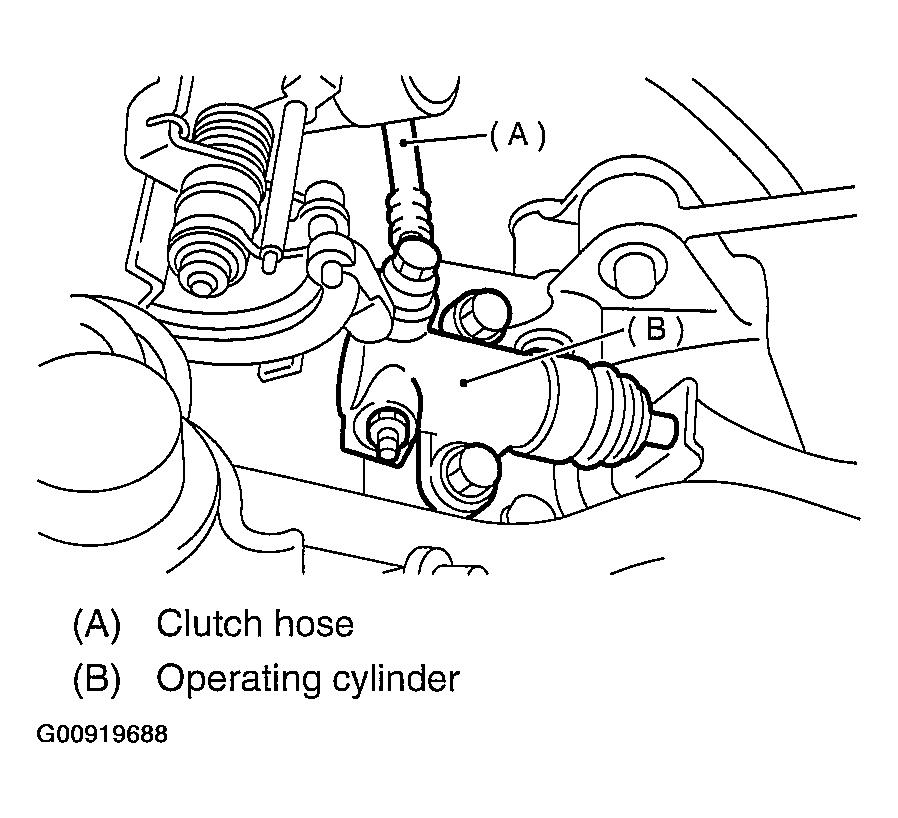

  Fig 1: Removing Clutch Hose From Operating Cylinder (Non-TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO model

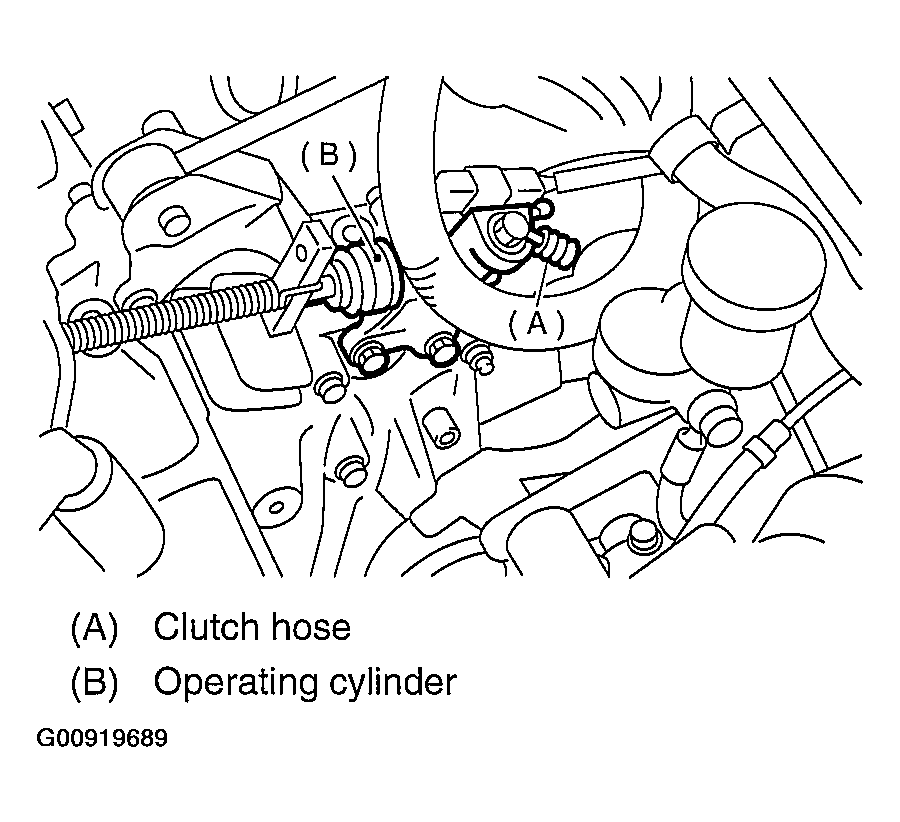

  Fig 2: Removing Clutch Hose From Operating Cylinder (TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from transmission.
- Non-TURBO model

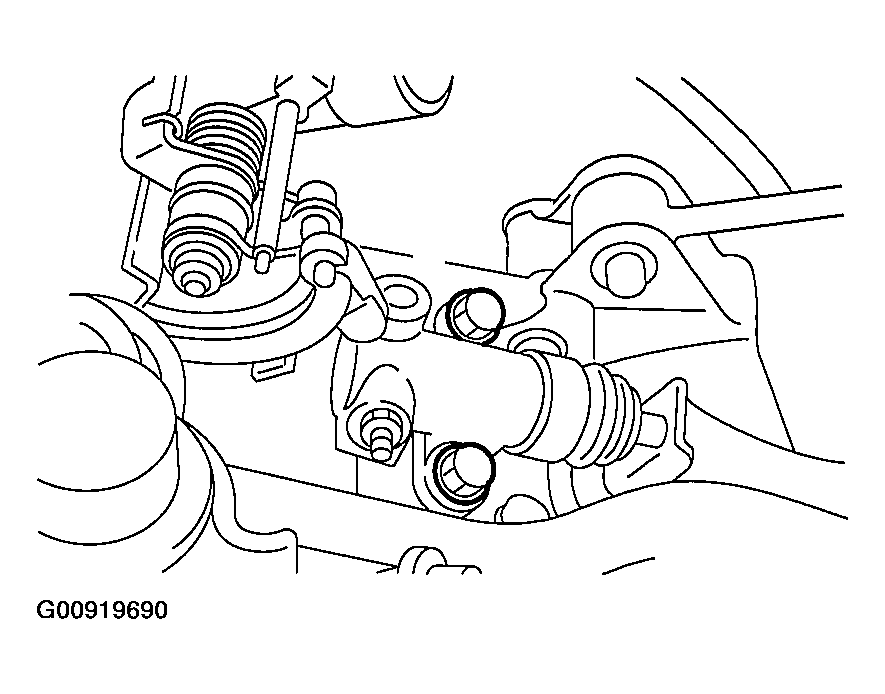

  Fig 3: Removing Operating Cylinder From Transmission (Non-TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO model

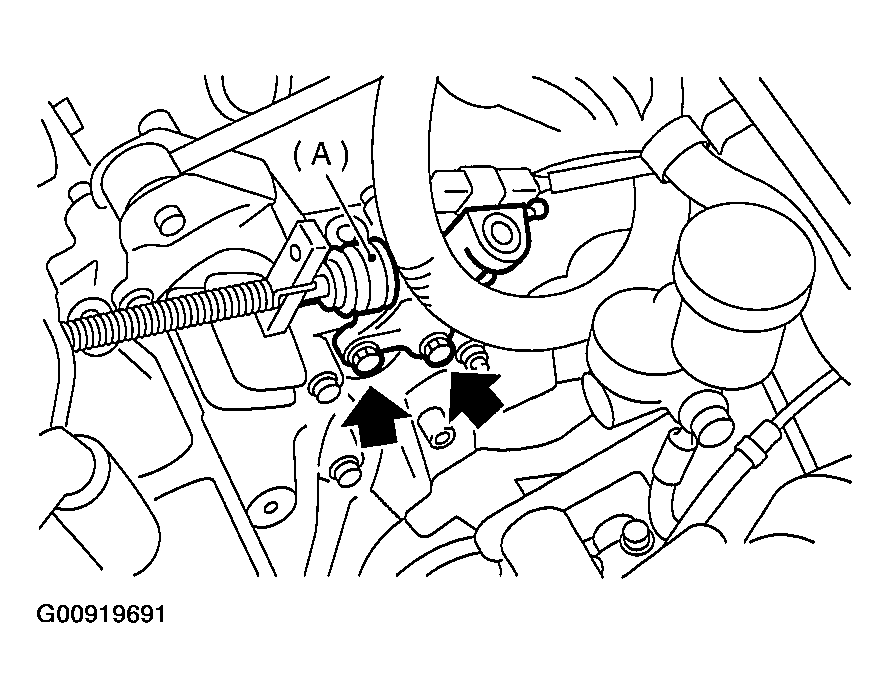

  Fig 4: Removing Operating Cylinder From Transmission (TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
