Engine Assembly: Installation

1. Remove the release bearing from clutch cover with flat type screw driver.

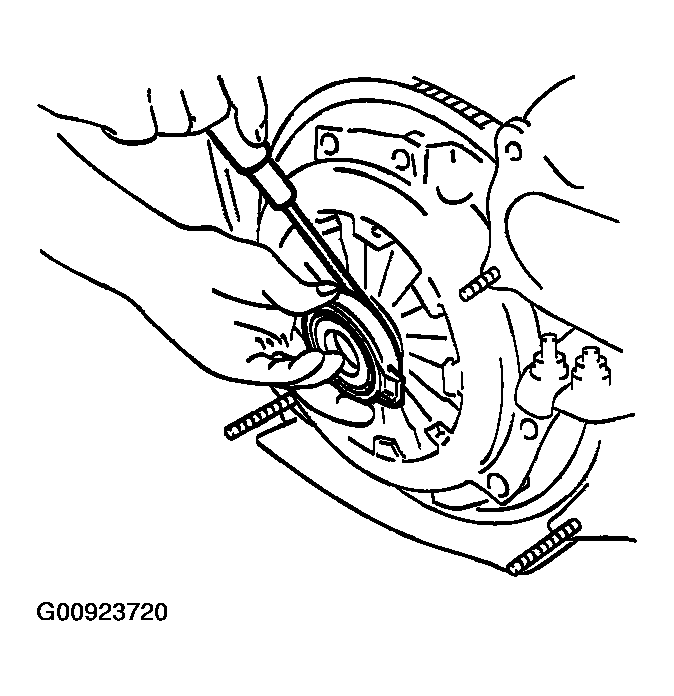

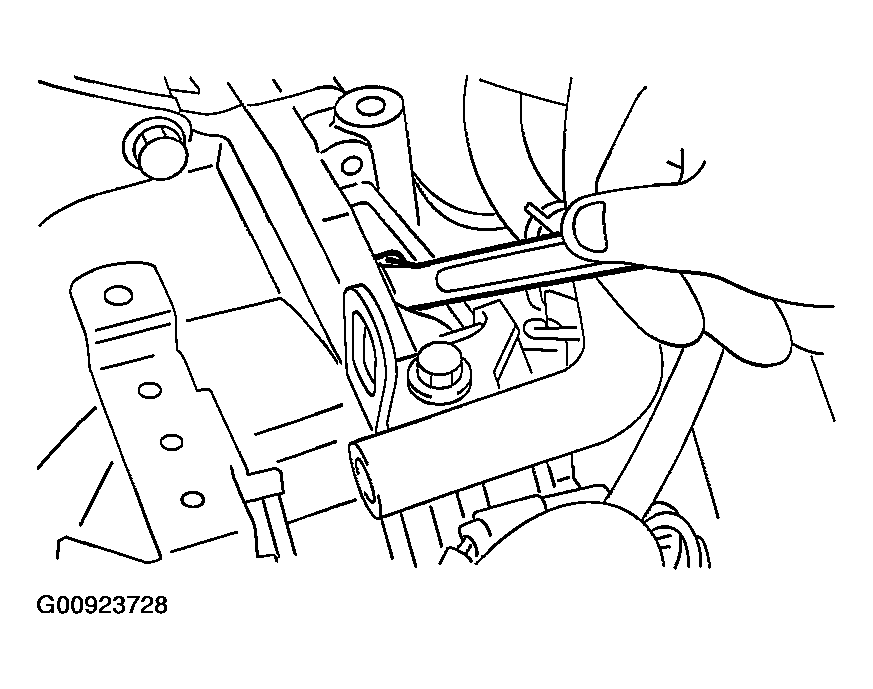

   Fig 1: Removing Release Bearing From Clutch Cover With Flat Type Screw Driver

   Courtesy of SUBARU OF AMERICA, INC.
2. Install the release bearing on transmission.

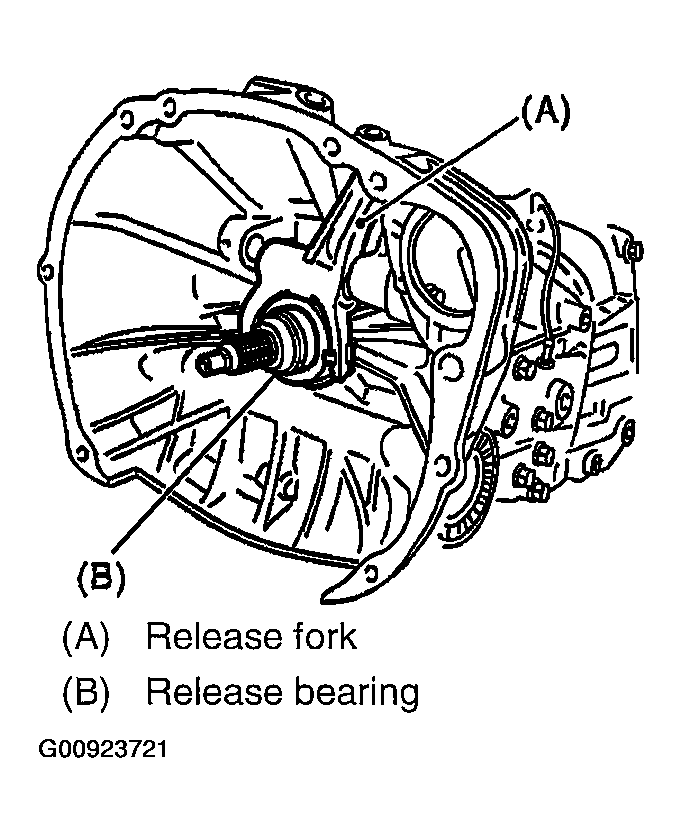

3. Install the release fork into release bearing tab.

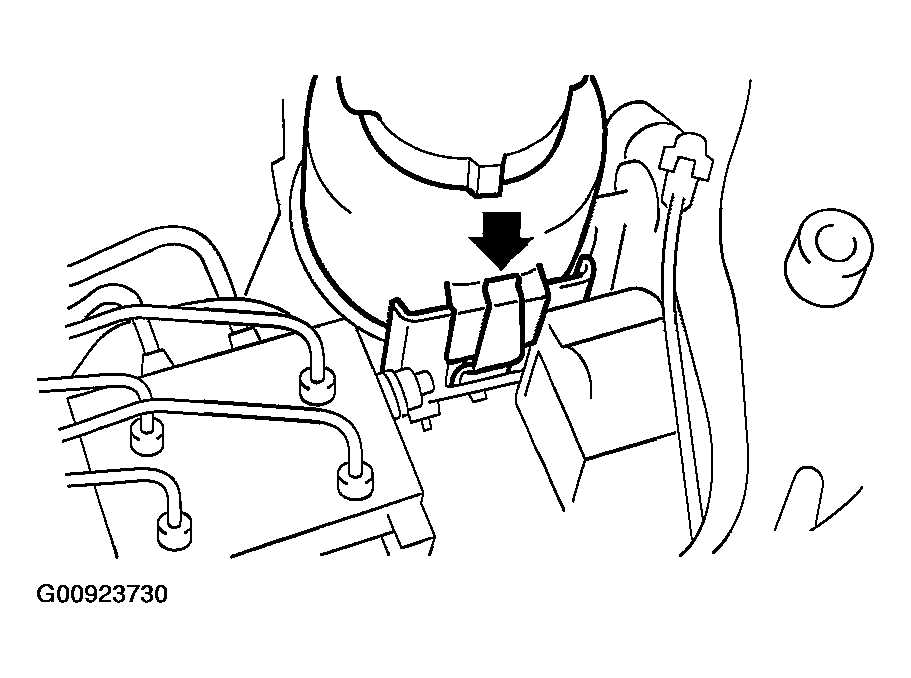

   Fig 2: Installing Release Fork Into Release Bearing Tab

   Courtesy of SUBARU OF AMERICA, INC.
4. Apply grease to the specified points.
   • Spline FX2200
   • Shaft SUNLIGHT 2

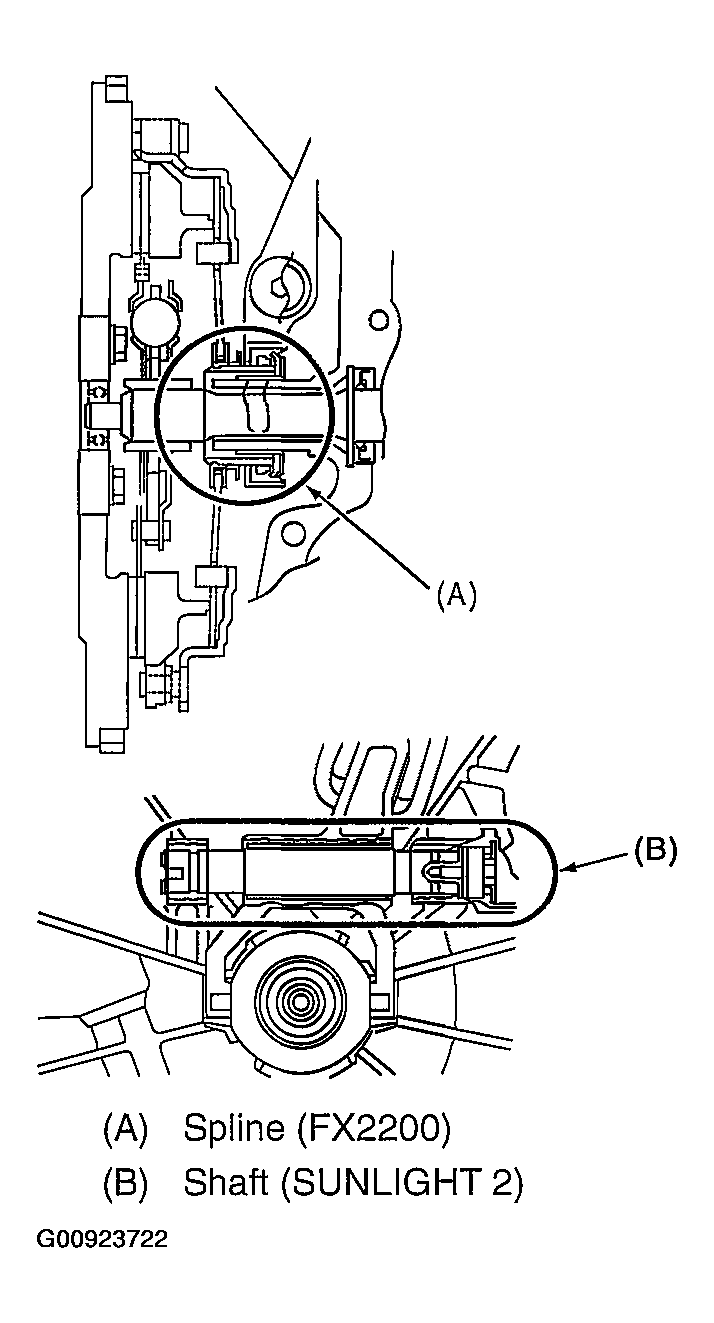

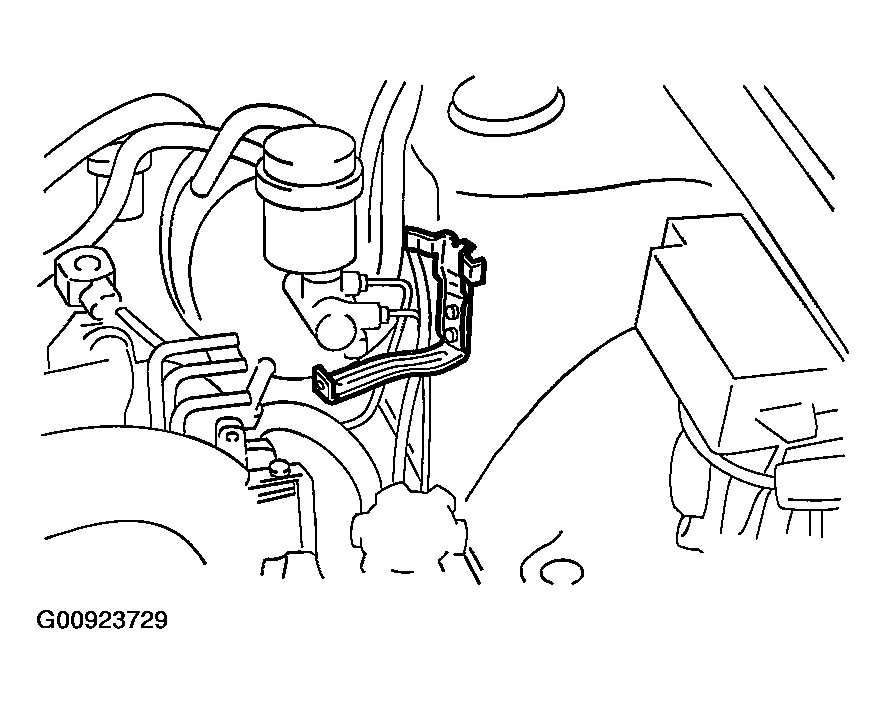

     Fig 3: Identifying Shaft Sunlight 2

     Courtesy of SUBARU OF AMERICA, INC.

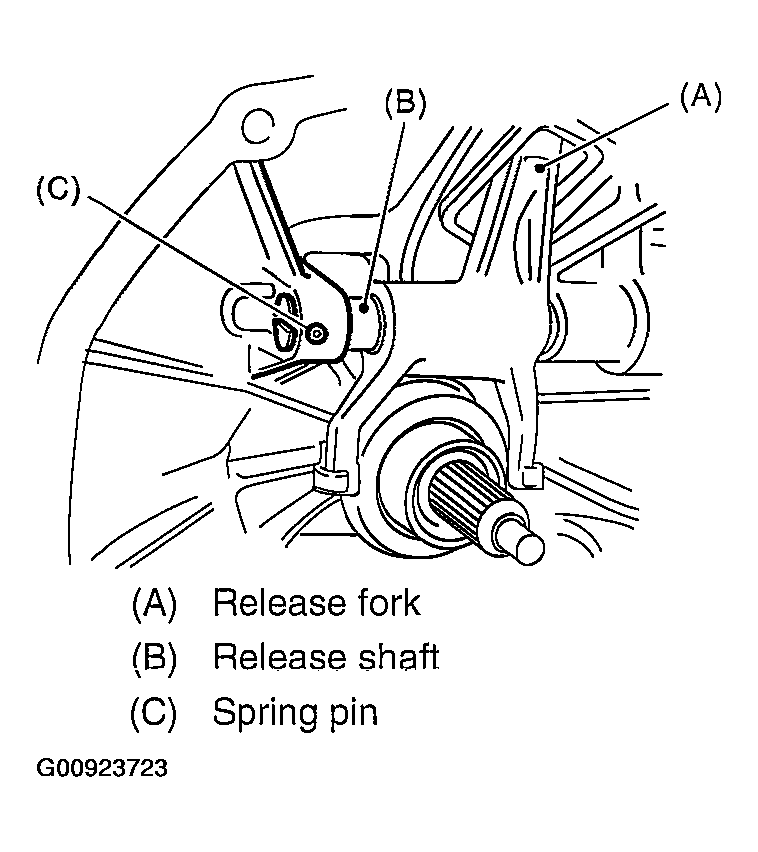

5. Insert the release fork shaft into release fork.
   CAUTION: Make sure the cutout portion of release fork shaft contacts spring pin.
   Fig 4: Inserting Release Fork Shaft Into Release Fork

   Courtesy of SUBARU OF AMERICA, INC.

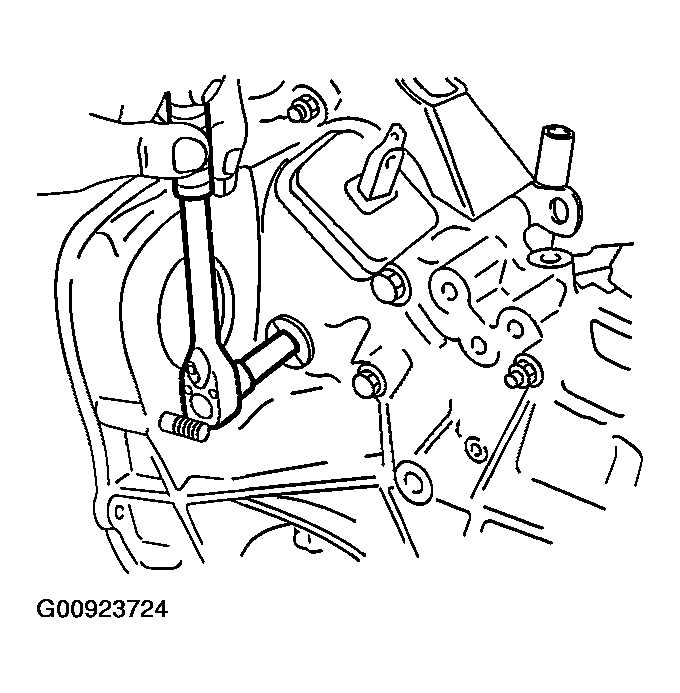

6. Tighten the plug.

   Tightening torque:

   44 N.m (4.5 kgf-m, 32.5 ft-lb)

   Fig 5: Tightening Plug

   Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

34 N.m (3.5 kgf-m, 25.3 ft-lb)

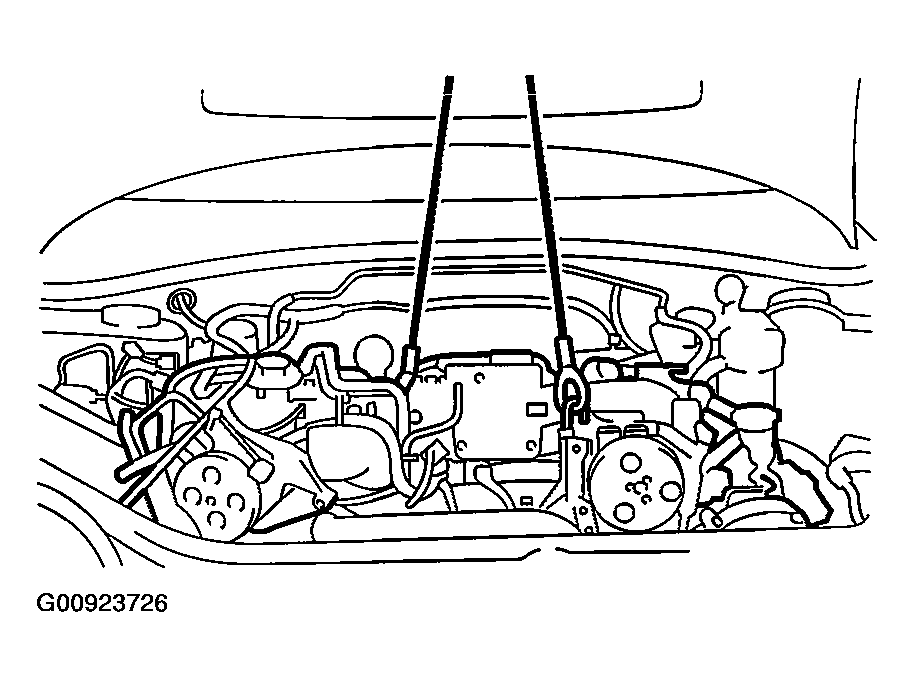

1. Position the engine in engine compartment, and then align it with the transmission.
   NOTE: Be careful not to damage the adjacent parts or body panels with crank pulley, oil pressure gauge, etc.
2. Apply a small amount of grease to the splines of mainshaft. (MT model)

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

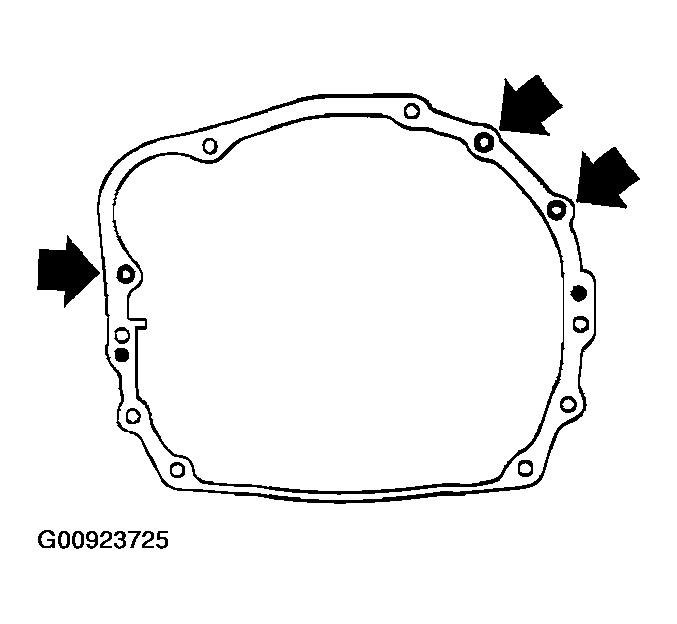

Fig 6: Tightening Bolts Which Hold Right Upper Side Of Transmission To Engine

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

T1: 50 N.m (5.1 kgf-m, 37 ft-lb)

T2: 58 N.m (5.9 kgf-m, 43 ft-lb)

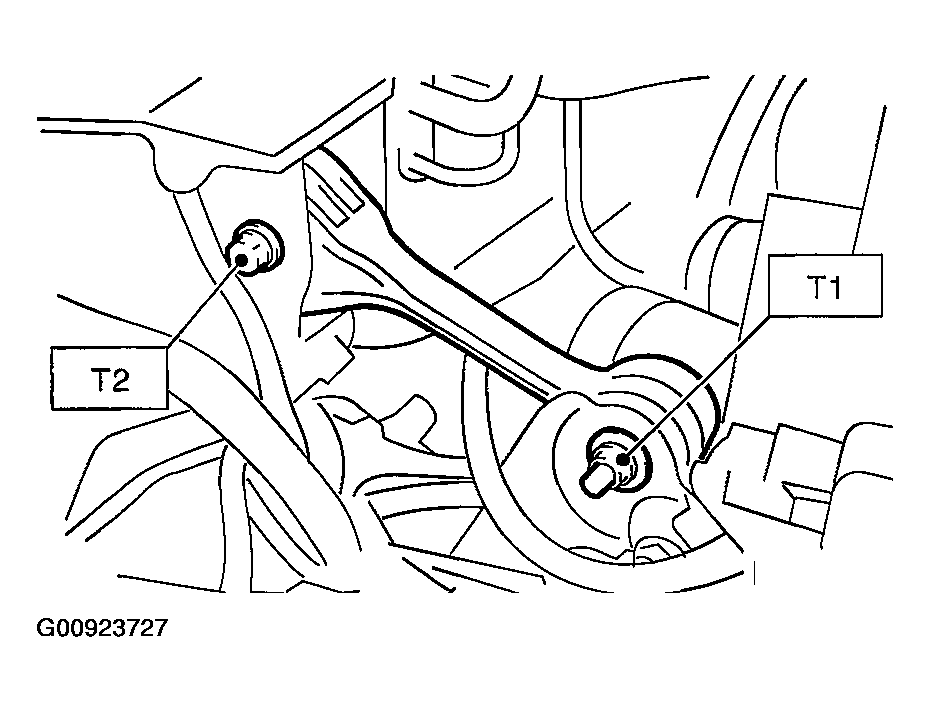

Fig 8: Installing Pitching Stopper

Courtesy of SUBARU OF AMERICA, INC.

ST 498277200 STOPPER SET

1. Tighten bolts which hold torque converter clutch to drive plate.
2. Tighten other bolts while rotating the engine by using socket wrench.
   CAUTION: Be careful not to drop bolts into torque converter clutch housing.

   Tightening torque:

   25 N.m (2.5 kgf-m, 18.1 ft-lb)

   Fig 9: Tightening Other Bolts While Rotating Engine By Using Socket Wrench

   Courtesy of SUBARU OF AMERICA, INC.
3. Clog plug onto service hole.

1. Install the power steering tank on bracket.
   Fig 11: Installing Power Steering Pump On Bracket

   Courtesy of SUBARU OF AMERICA, INC.
2. Install the power steering pump.

   Tightening torque:

   20.1 N.m (2.05 kgf-m, 14.8 ft-lb)

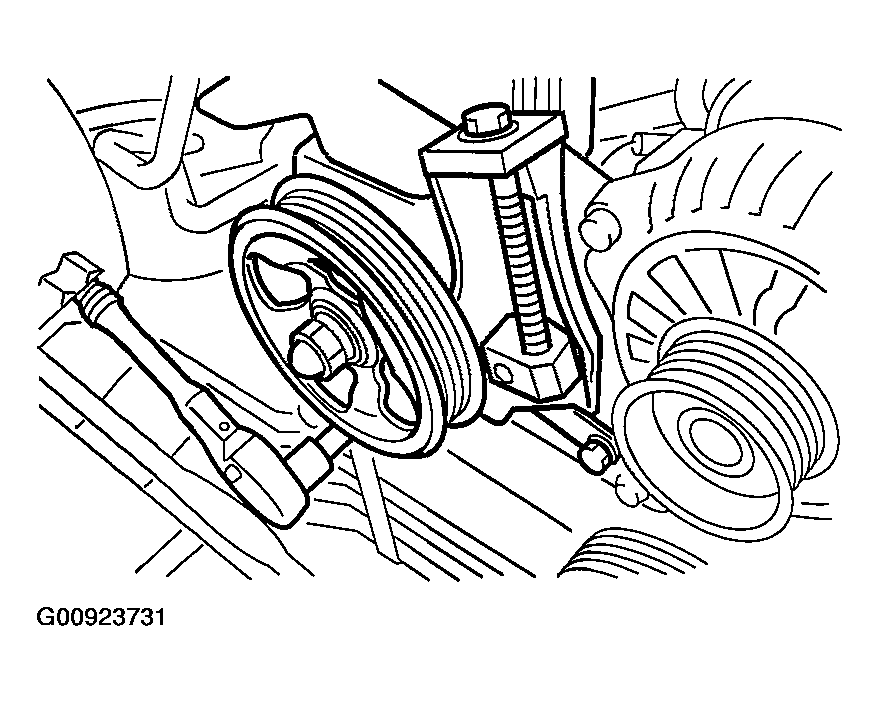

   Fig 12: Installing Power Steering Pump

   Courtesy of SUBARU OF AMERICA, INC.
3. Install the power steering pipe bracket on intake manifold RH.

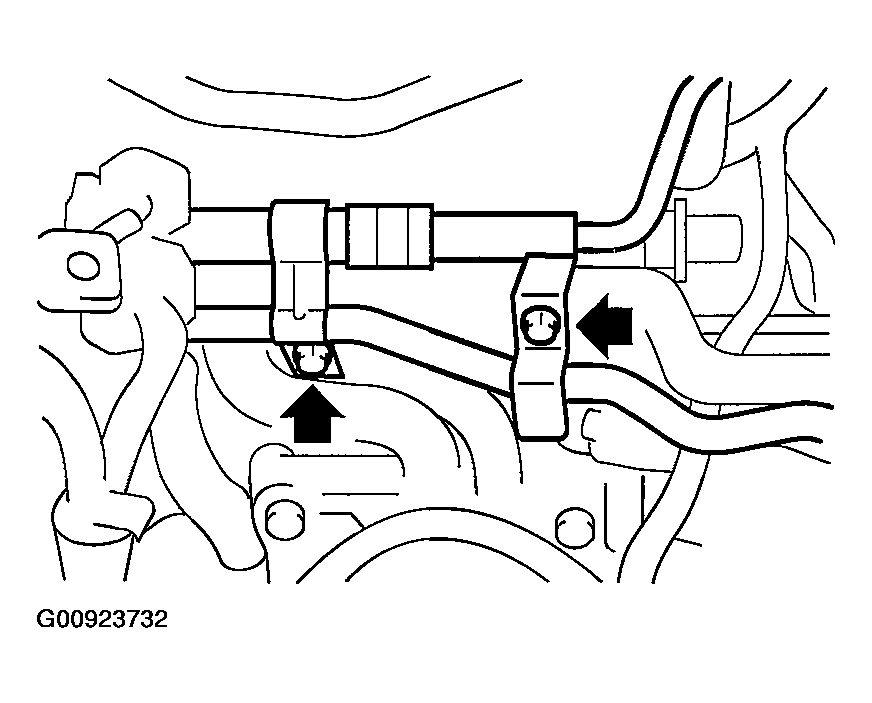

   Fig 13: Installing Power Steering Pipe Bracket On Intake Manifold RH

   Courtesy of SUBARU OF AMERICA, INC.
4. Connect the power steering switch connector.

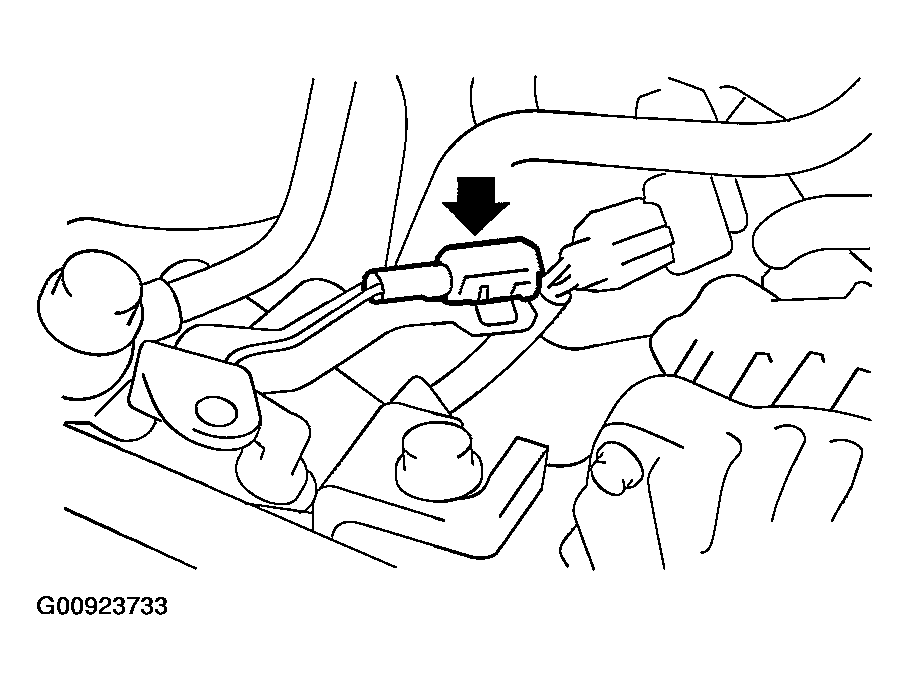

   Fig 14: Connecting Power Steering Switch Connector

   Courtesy of SUBARU OF AMERICA, INC.
5. Install the front side V-belt, and adjust it. Refer to V-BELT .

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

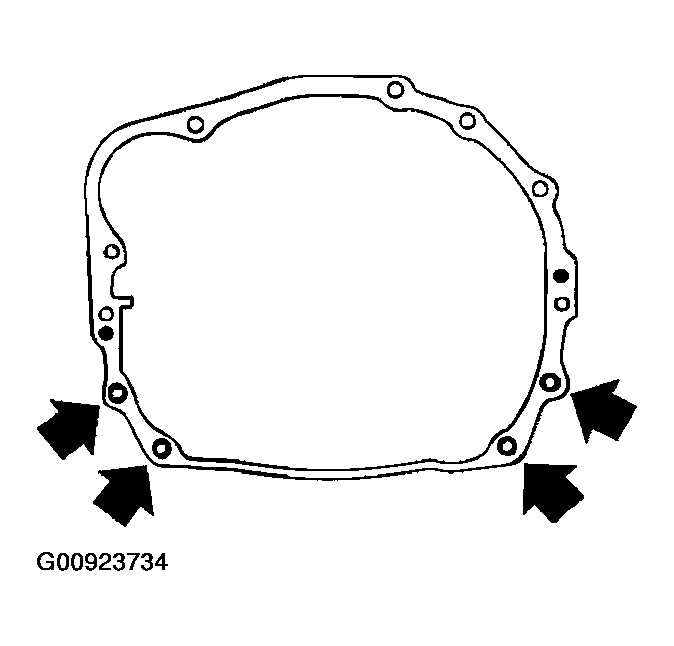

Fig 15: Tightening Nuts Which Hold Lower Side Of Transmission To Engine

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

83 N.m (8.5 kgf-m, 61 ft-lb)

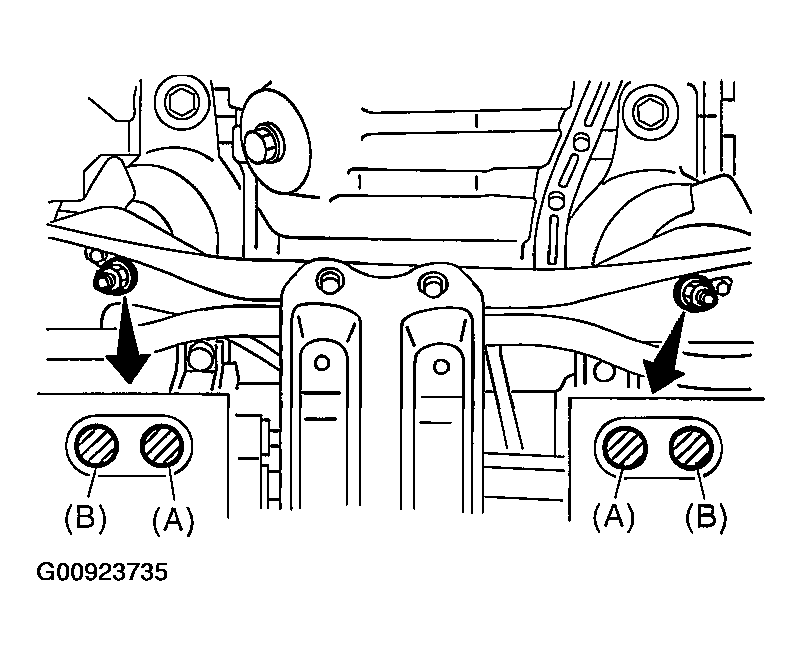

Fig 16: Tightening Nuts Which Install Front Cushion Rubber Onto Crossmember

Courtesy of SUBARU OF AMERICA, INC.

1. Fuel delivery hose, return hose and evaporation hose
2. Heater inlet and outlet hoses
3. Brake booster vacuum hose

1. Engine ground terminal
2. Engine harness connectors
3. Generator connector and terminal
4. A/C compressor connectors

1. Accelerator cable
2. Clutch release spring

1. Install the intercooler. Refer to INSTALLATION , Intercooler.
2. Install the air cleaner element and air cleaner upper cover.
3. Install the engine harness connector bracket.
4. Install the filler hose to air cleaner case.

Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

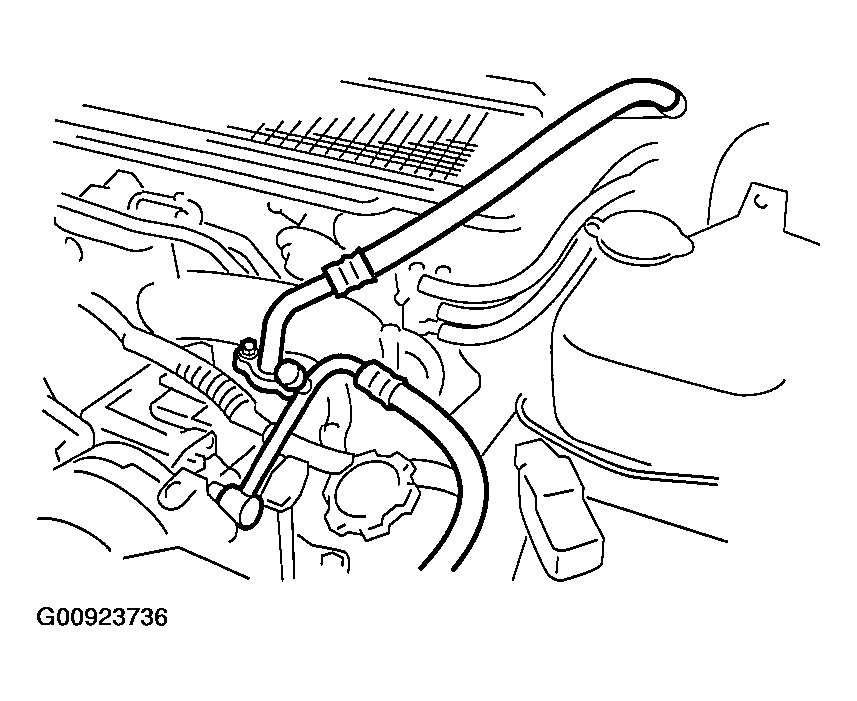

Fig 17: Installing A/C Pressure Hoses

Courtesy of SUBARU OF AMERICA, INC.

Refer to REPLACEMENT Engine Coolant.

Refer to REFRIGERANT CHARGING PROCEDURE .
