Section 177 (Intake (Induction) (H4DOTC)): Intercooler: Installation

WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

Tightening torque: 16 N.m (1.6 kgf-m, 11.6 ft-lb)

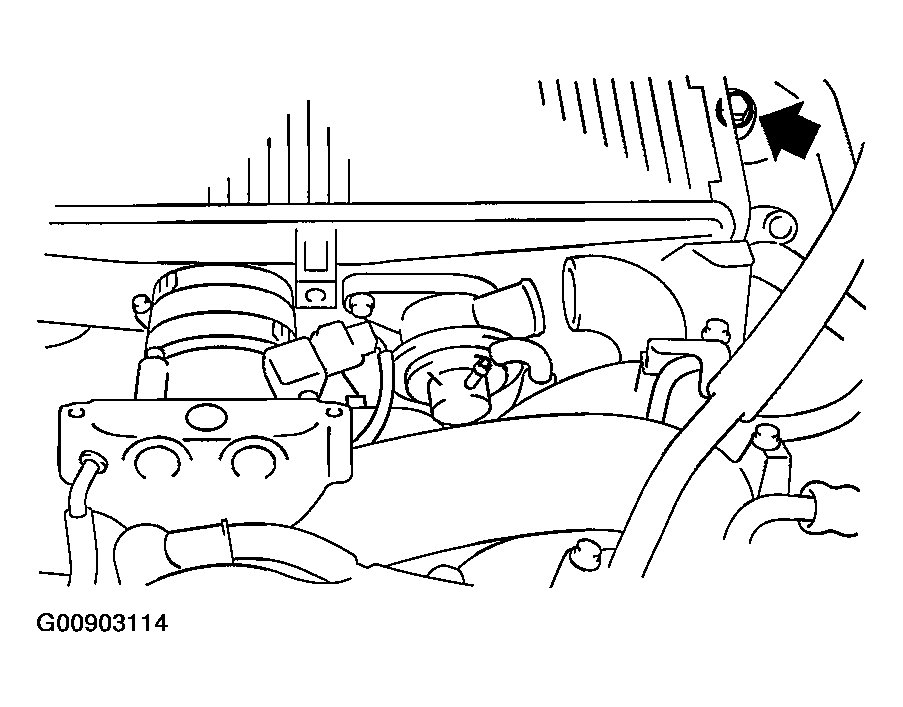

Fig 1: Tightening Bolt (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

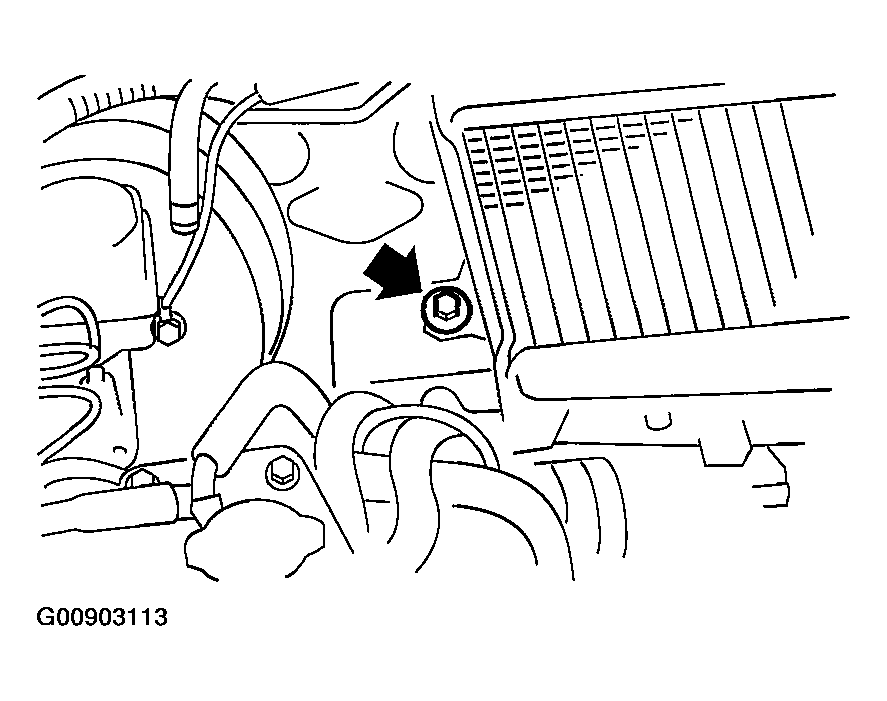

Fig 2: Tightening Bolt (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
