Parking Pawl: Installation

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the parking pawl, shaft and return spring.

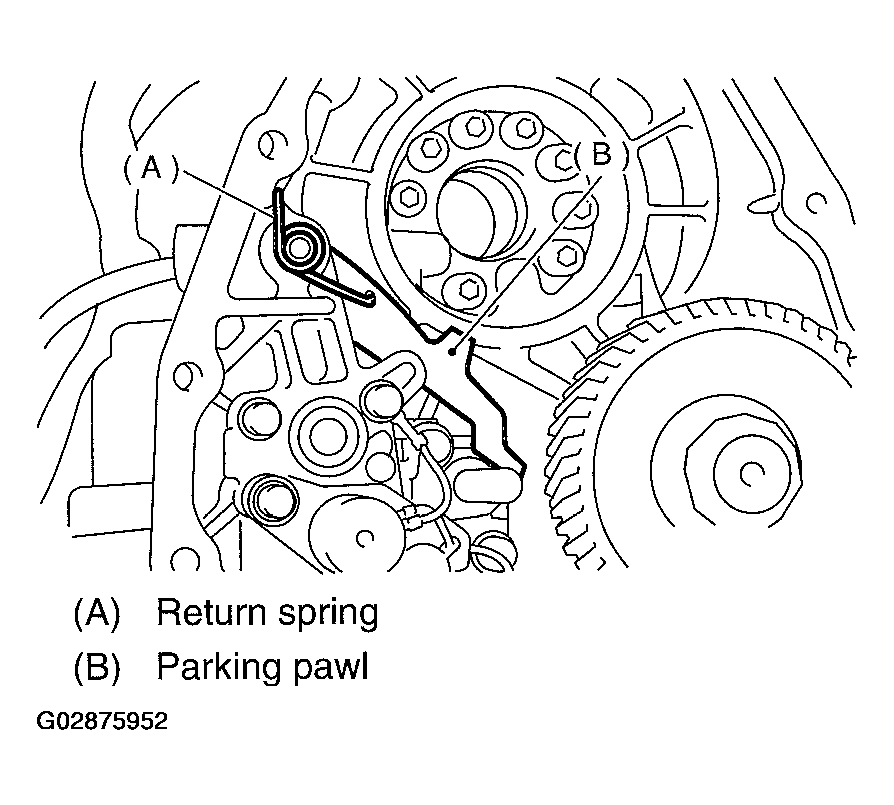

    Fig 1: Installing Parking Pawl, Shaft & Return Spring
    G02875952Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction drive gear. < Ref. to INSTALLATION , Reduction Drive Gear.>
  3. Install the center differential carrier. (VTD model) < Ref. to INSTALLATION , Center Differential Carrier.>
  4. Install the rear vehicle speed sensor and extension case. < Ref. to INSTALLATION , Extension Case.>
  5. Install the transmission assembly to the vehicle.

    < Ref. to INSTALLATION , Automatic Transmission Assembly.>
