Center Differential Carrier: Installation

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center differential assembly with the shim(s).
    NOTE: Insert the center differential assembly and shim(s) completely into the bearing shoulder bottom.

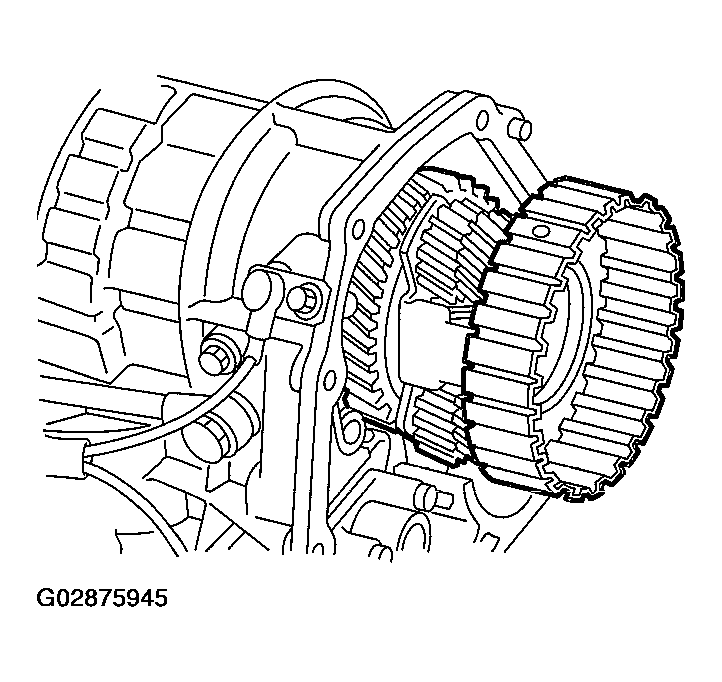

    Fig 1: Installing Center Differential Assembly With Shim(s)
    G02875945Courtesy of SUBARU OF AMERICA, INC.
  2. Insert the rear driveshaft. < Ref. to INSTALLATION , Rear Drive Shaft.>
  3. Connect the transmission case and extension case, and install the rear wheel speed sensor.

    < Ref. to INSTALLATION , Extension Case.>

  4. Install the transmission assembly onto vehicle.

    < Ref. to INSTALLATION , Automatic Transmission Assembly.>
