Center Support And Low-Reverse Brake Assembly: Notes

NOTE: Low-reverse brake plates were removed at Transmission Disassembly and will be installed at Transmission Reassembly. See Fig 1 for exploded view of Center Support and Low-Reverse Brake Assembly.

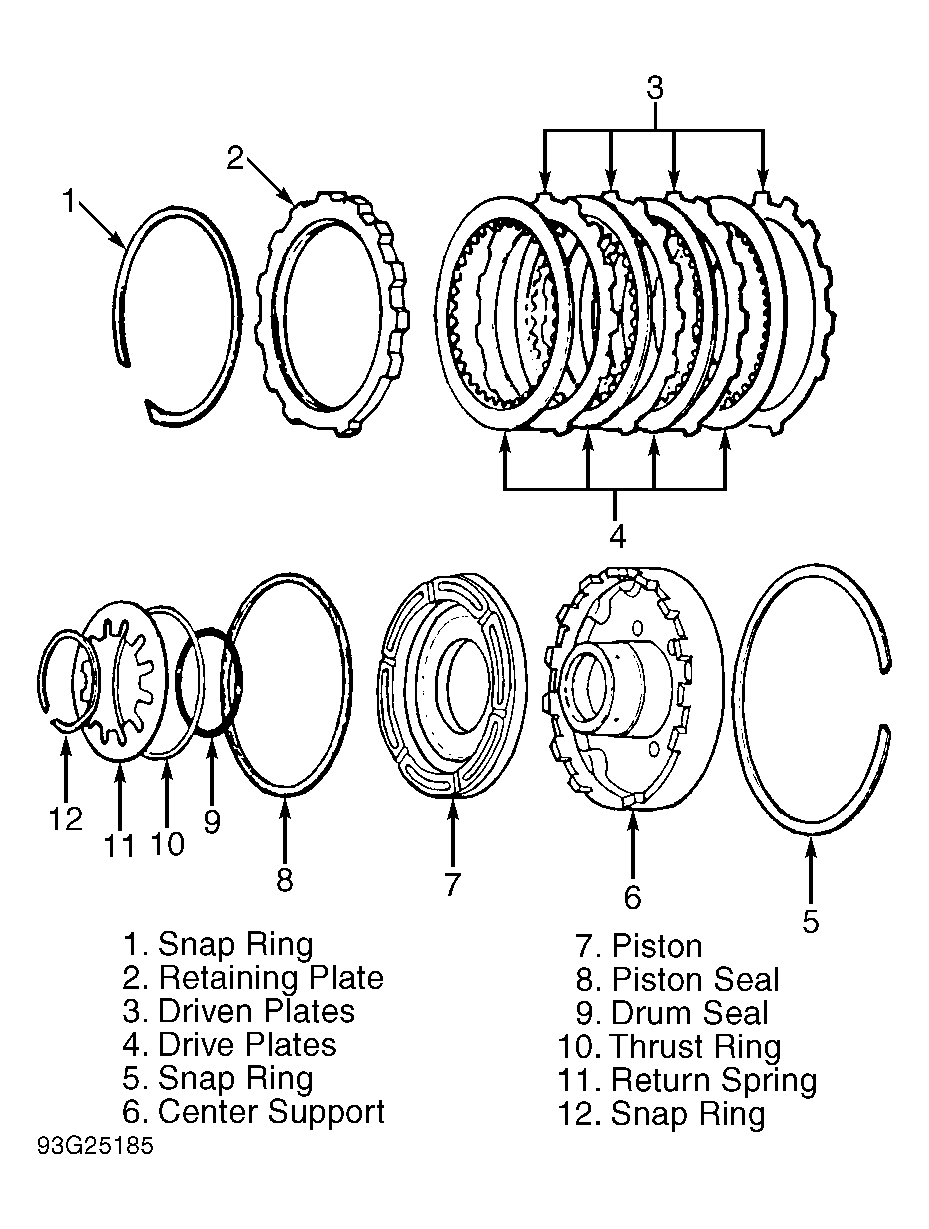

Fig 1: Exploded View Of Center Support & Low-Reverse Brake Assembly

Courtesy of SUBARU OF AMERICA, INC.
