Overview Of System Components For Dual Clutch Transmission - GF27.10-P-9994KJ
TRANSMISSION 700.4 in model 453.0/3/4

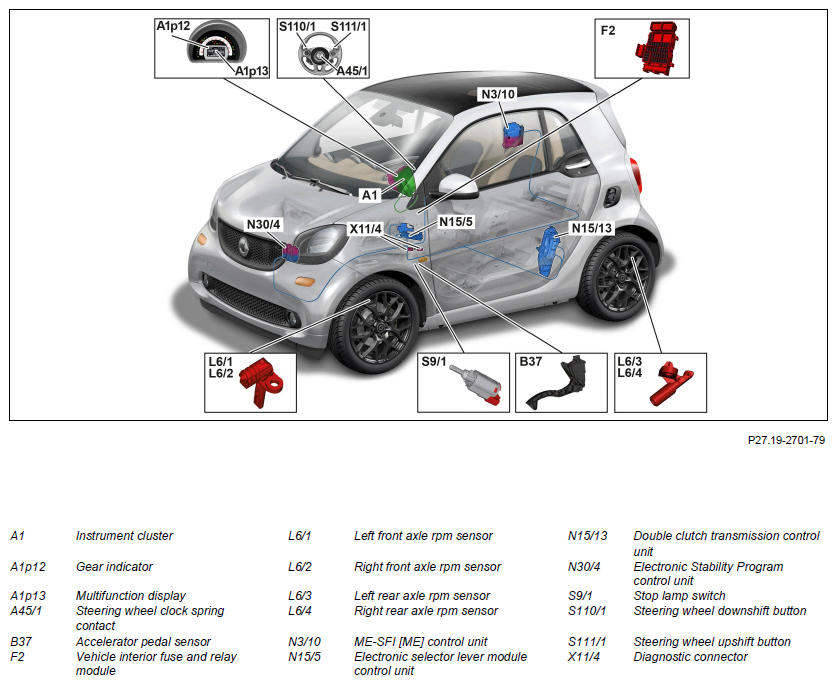

Vehicle view, shown on model 453.3

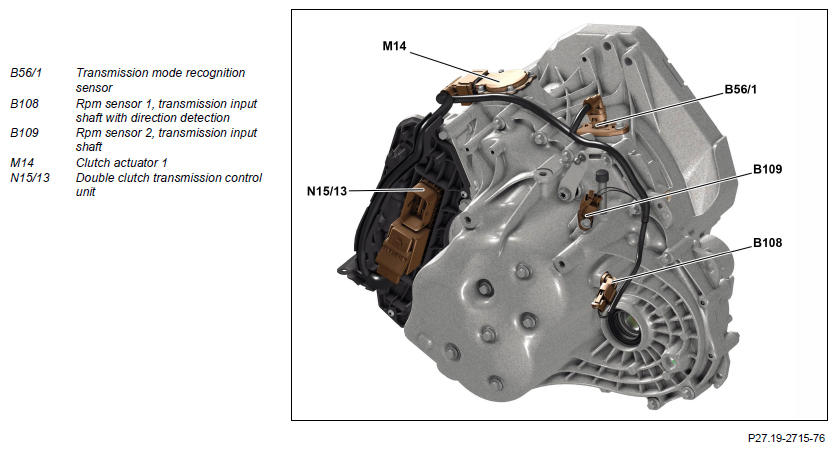

View of dual clutch transmission from rear

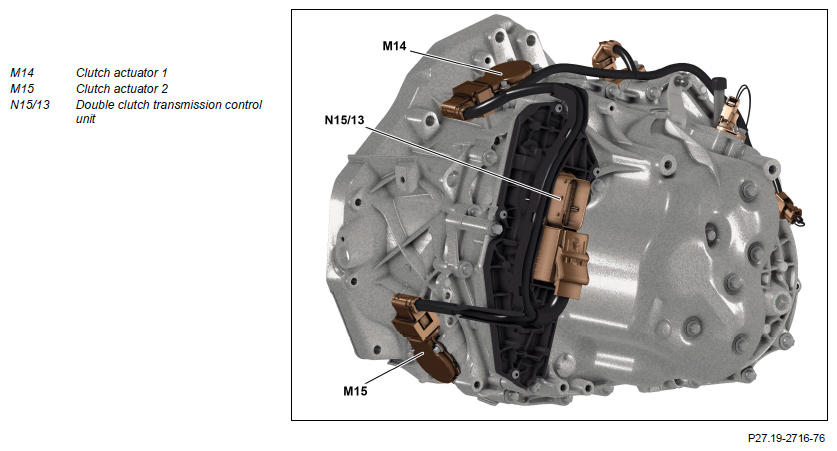

View of dual clutch transmission from left

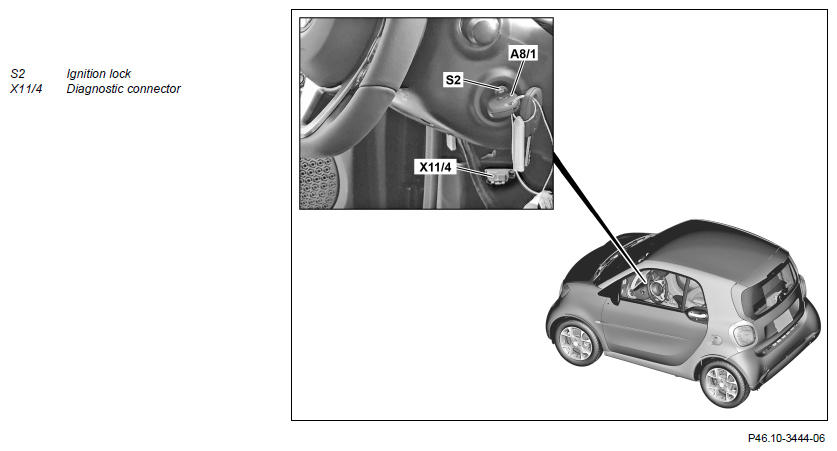

View of steering column from the right
| Component description for instrument cluster | Model 453.0/3/4 with transmission 700.4 with code K35 (Instrument cluster with monochrome display) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1 |
GF54.30-P-6000KJ | |
| Component description for ME-SFI (ME) control unit | Model 453.0/3/4 with engine 281.910 with transmission 700.4 N3/10 |
GF07.61-P-6000KJ | |
| Model 453.0/3/4 with engine 281.920 with transmission 700.4 N3/10 |
GF07.61-P-6000KJF | ||
| Component description for electronic selector lever module control unit | N15/5 | GF27.60-P-5163KJ | |
| Dual clutch transmission control unit, component description | N15/13 | GF27.60-P-5171KJ | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KJ | |
| Table of contents for function description of dual clutch transmission | GF27.10-P-0997KJ |
