Remove/Install Cable Of Selector Lever Lock - AR27.60-P-0002SR

MODEL 453 (except 453.09/39/49) with TRANSMISSION 700.41

Courtesy of MERCEDES-BENZ USA

Shown on model 453.0

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove selector lever with bearing bracket		AR27.60-P-6628SR
2	Remove fan		AR20.40-P-5614SR

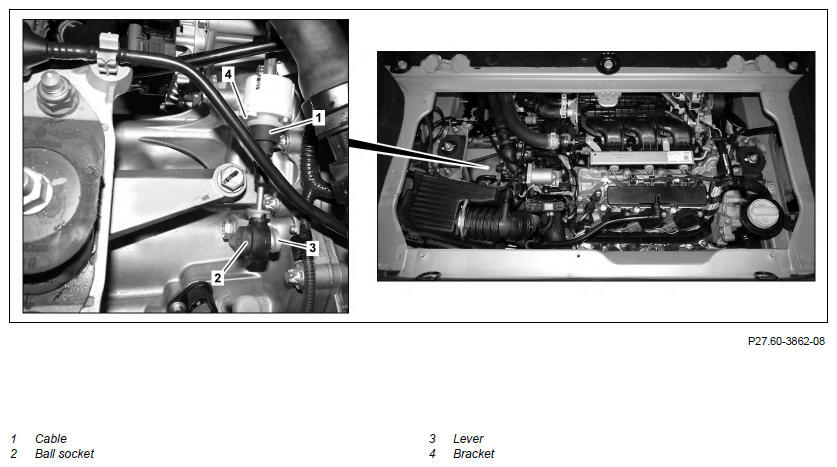

3	Remove ball socket (2) from lever (3) using suitable tool
4	Unclip cable (1) upwards from bracket (4)
5	Remove floor covering in rear passenger compartment	Model 453.0 with transmission 700.41	AR68.20-P-4800SR

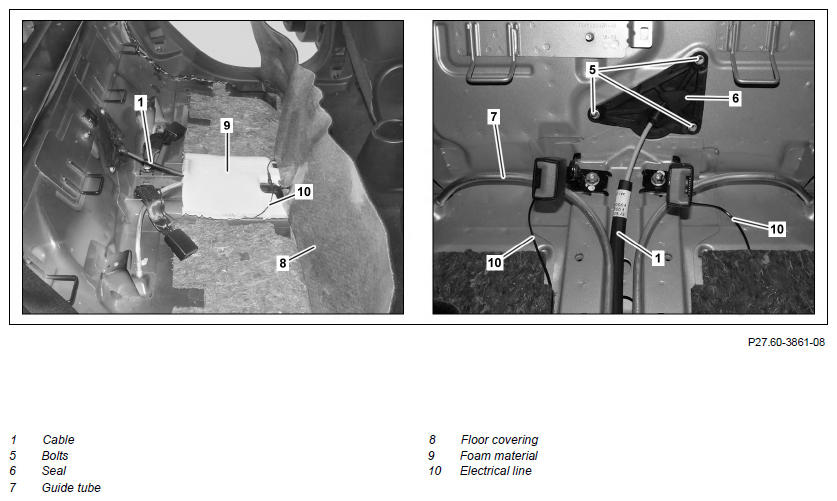

6	Lift floor covering (8)	Model 453.0 with transmission 700.41
7	Remove foam material (9)	Model 453.0 with transmission 700.41 : Ensure that electrical lines (10) are routed correctly.
8	Move both front seats as far forward as possible and fold backrests down	Model 453.3/4 with transmission 700.41
9	Partially remove floor covering behind front seats, fold upward and fix in place	Model 453.3/4 with transmission 700.41
10	Unscrew bolts (5)
11	Detach sealing (6) from body	: Ensure that sealing (6) is seated correctly. Otherwise, water can penetrate into the vehicle interior.
12	Loosen nuts at parking brake lever on body and raise parking brake lever far enough until cable (1) can be mounted and removed	: Ensure that cable (1) is seated correctly. : Check free travel of parking brake. After the parking brake lever has been moved to the 2nd detent the rear complete wheels must not be able to be turned by hand. The complete wheels must turn freely when the parking brake lever is released. If this is not the case: ↓ Adjust parking brake.	AR42.20-P-0540SR
13	Remove cable (1) with sealing (6) out of the vehicle	: Ensure that guide tube (7) is seated correctly.
14	Install in the reverse order
