Remove/Install Selector Lever With Bearing Bracket - AR27.60-P-6628SR

MODEL 453 (except 453.09/39/49) with TRANSMISSION 700.41

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

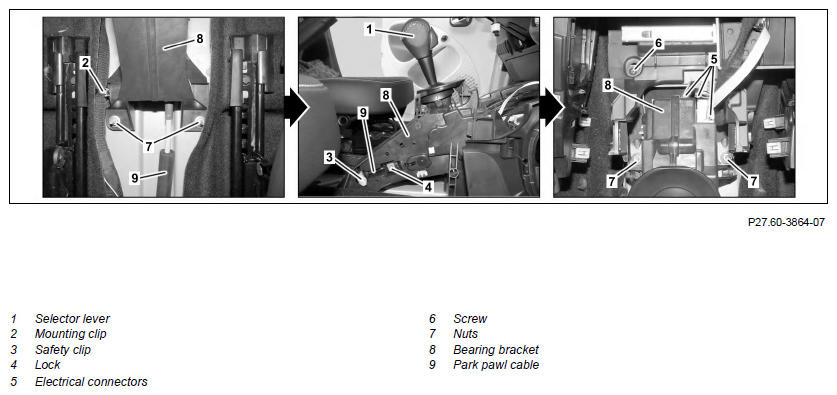

1	Move selector lever (1) into park position
2	Remove center console		AR68.20-P-2000SR
3	Unclip retaining clip (2)
4	Move both front seats all the way to the rear
5	Remove safety clamp (3)	: Replace safety clamp (3).
6	Release lock (4)	: Check that lock (4) is correctly latched into place.
7	Disconnect electrical connectors (5)
8	Remove bolt (6)
9	Unscrew nuts (7)
10	Raise bearing bracket (8) and move parking interlock cable (9) out of bearing bracket (8)
11	Remove selector lever (1) with bearing bracket (8)
12	Install in the reverse order
