Remove/Install Fuel Line - AR47.25-P-0025SR
MODEL 453 with ENGINE 281
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove covering over engine | ||

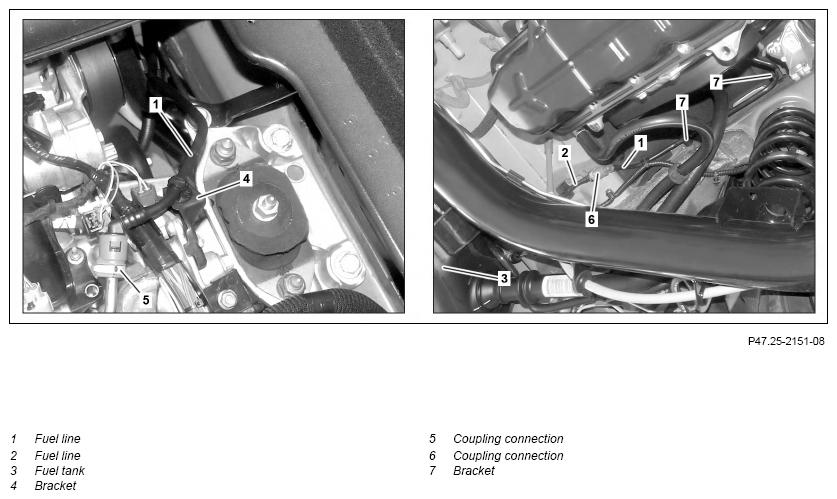

| 2 | Unclip fuel line (1) on bracket (4) | ||
| 3 | Release coupling connection (5) and detach fuel line (1) | ||
| 4 | Lift vehicle on vehicle lift | ||
| 5 | Release coupling connection (6) and detach fuel line (1) from fuel line (2) | ||
| 6 | Unclip fuel line (1) at brackets (7) and take off | ||
| 7 | Lower fuel tank (3) until the fuel line (2) is accessible | AR47.10-P-4100SR | |

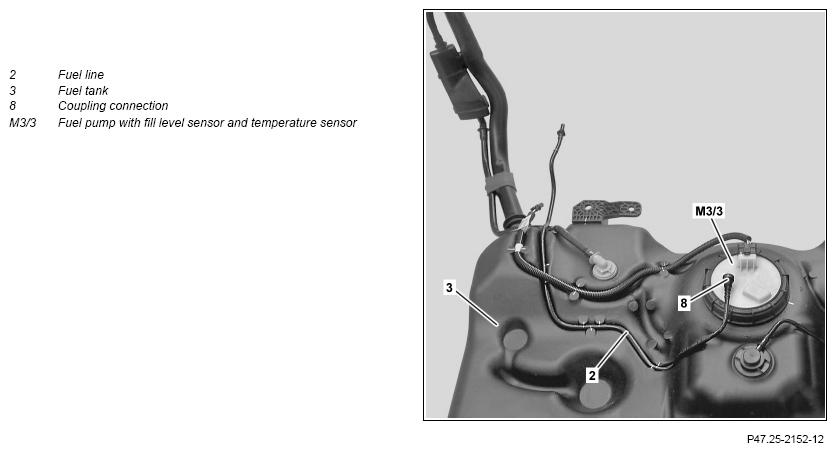

| 8 | Release coupling connection (8) and detach fuel line (2) from fuel pump with fill level sensor and temperature sensor (M3/3) | ||
| 9 | Unclip fuel line (2) on fuel tank (3) and take off | ||
| 10 | Install in the reverse order |
