Remove/Install Fuel Tank - AR47.10-P-4100SR
MODEL 453 with ENGINE 281
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Drain fuel tank (10) | AR47.10-P-4001SR | |
| 2 | Remove fender liner in right rear fender | Model 453.3/4 with engine 281 | AR88.10-P-1400SRA |
| Model 453.0 with engine 281 | AR88.10-P-1400SR | ||

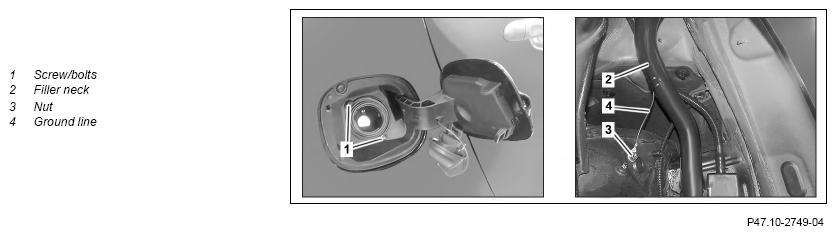

| 3 | Remove screws/bolts (1) at filler neck (2) | ||
| 4 | Unscrew nut (3) and remove ground line (4) | ||
| 5.1 | Remove rear underfloor paneling | Model 453.3 with engine 281 | |
| 5.2 | Remove underfloor paneling at rear and center | Model 453.0 with engine 281 | |
| 6 | Remove diagonal strut and cross strut at the rear | Model 453.4 with engine 281 | AR61.10-P-5139SRC |

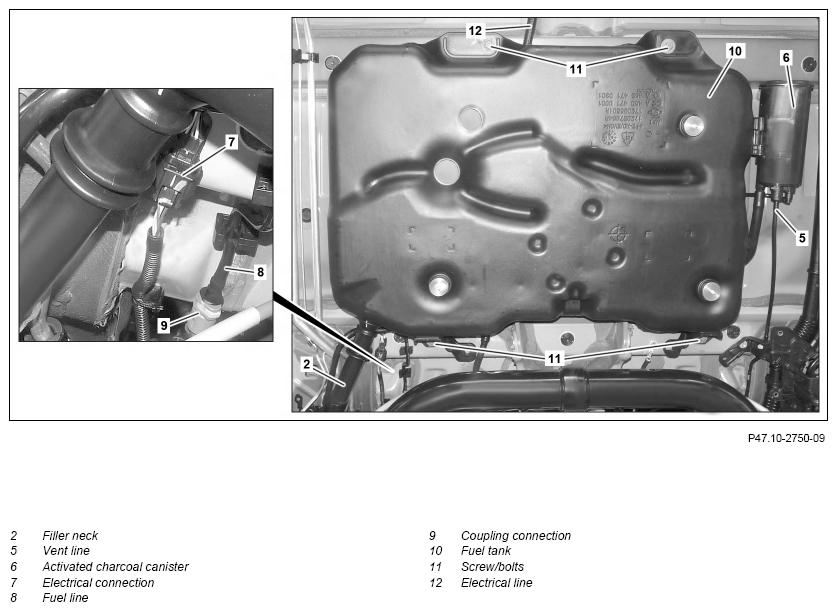

| 7 | Unlock vent line (5) on activated charcoal canister (6) and detach | ||
| 8 | Remove electrical connection (7) from undercarriage and separate | ||
| 9 | Unclip fuel line (8) on undercarriage | ||
| 10 | Disconnect fuel line (8) from coupling connection (9) | ||
| 11 |
Support fuel tank (10) with a telescopic lifter and removal fixture 000 588 11 62 00 Major assembly mount |
WS01.00-P-0092B | |
| Fig 1 | |||
| 12 | Remove screw/bolts (11) and lower fuel tank (10) until the electrical line (12) is accessible | *BA47.10-P-1001-01Q | |
| 13 | Unclip electrical line (12) from fuel tank (10). | ||

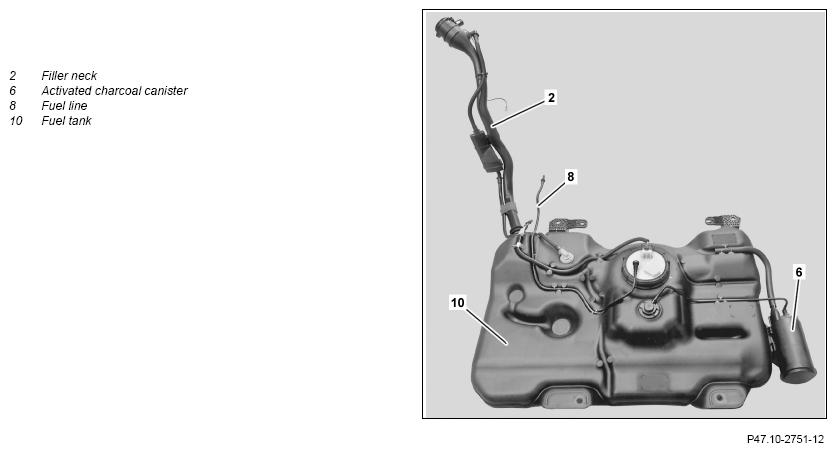

| 14 | Lower fuel tank (10) while leading the filler neck (2) out of the wheel well at the right rear | ||
| 15 | Remove fuel tank (10) | ||
| 16 | Install in the reverse order | ||
| Check | |||
| 17 | Check fuel tank (10) and connections for leaktightness |
FUEL TANK
| Number | Designation | Model 453 with engine 281 | |
|---|---|---|---|
| BA47.10-P-1001-01Q | Bolt, fuel tank to body | Nm | 21 |
