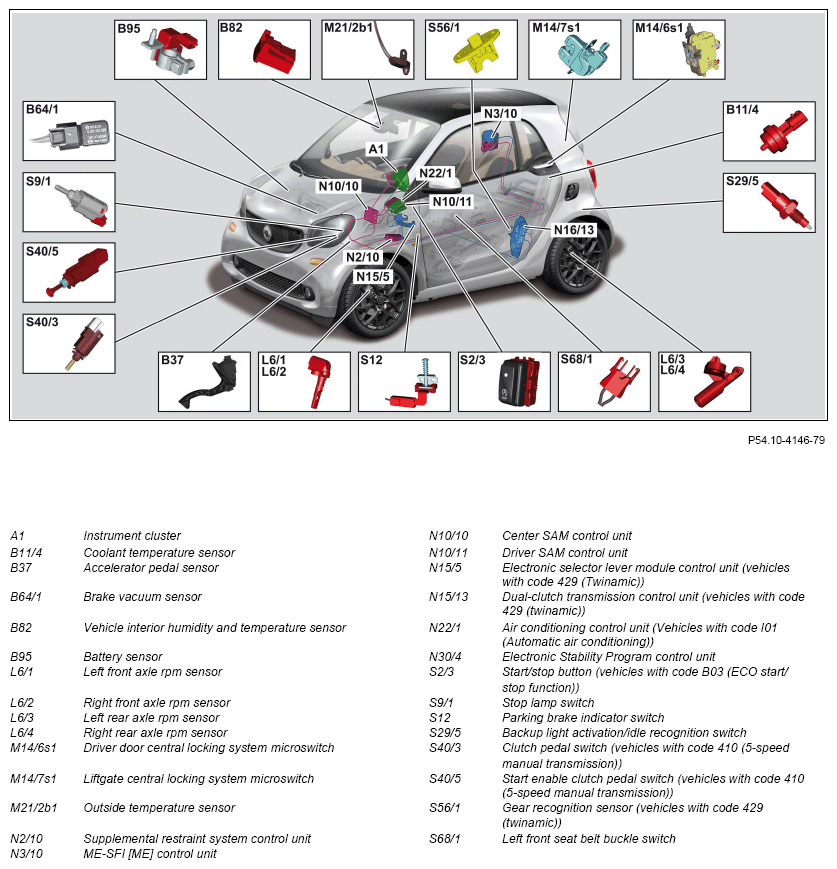

Overview Of Energy Management System Components - GF54.10-P-9990KJ
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491)
Shown on model 453.3
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080KJ | |
| Component description for ME-SFI (ME) control unit | Vehicles with engine 281.910 N3/10 |
GF07.61-P-6000KJ | |
| Vehicles with engine 281.920 | GF07.61-P-6000KJF | ||
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Driver-side SAM control unit, component description | N10/11 | GF54.21-P-7012KJ | |
| Component description for electronic selector lever module control unit | Vehicles with transmission 700.4 N15/5 |
GF27.60-P-5163KJ | |
| Dual clutch transmission control unit, component description | Vehicles with transmission 700.4 N15/13 |
GF27.60-P-5171KJ | |
| Climate control unit, component description | Vehicles with code I01 (Automatic air conditioning) N22/1 |
GF83.40-P-2250KJ | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KJ | |
| Table of contents for function description of energy management | GF54.10-P-0990KJ |
