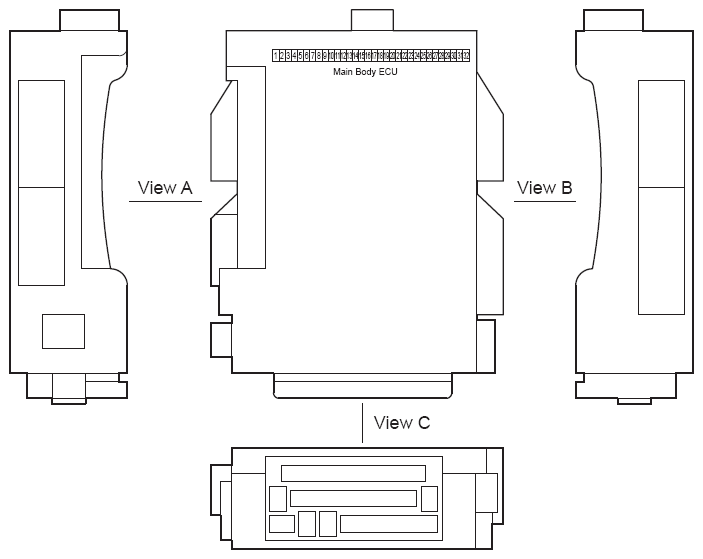

Instrument Panel Junction Block Assembly - Lower Finish Panel: Notes

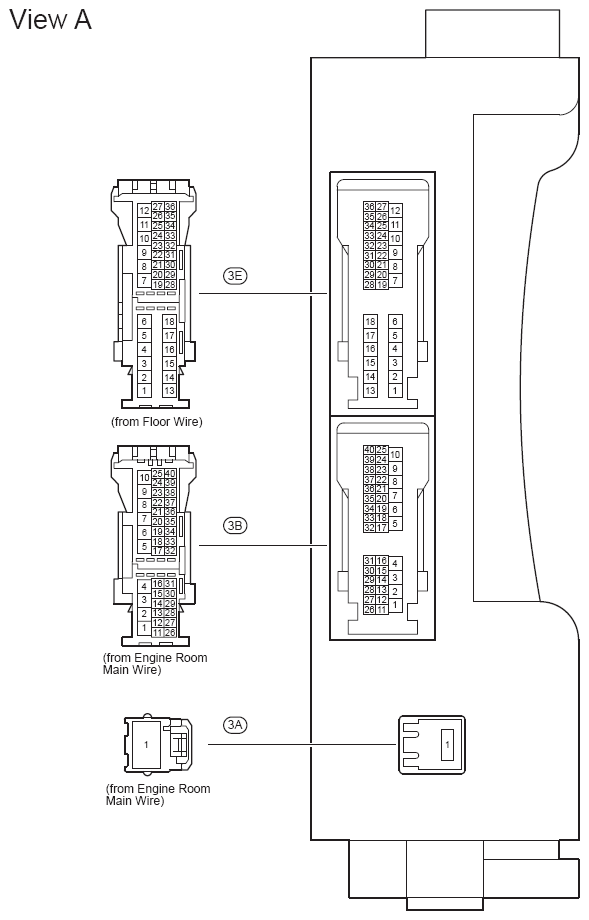

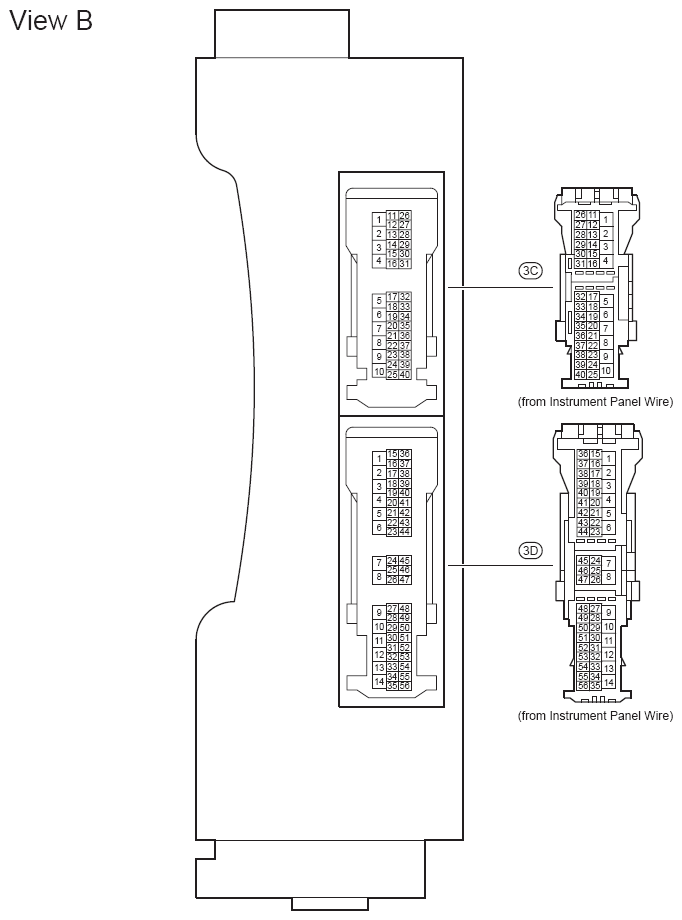

For additional information, refer to Figure.

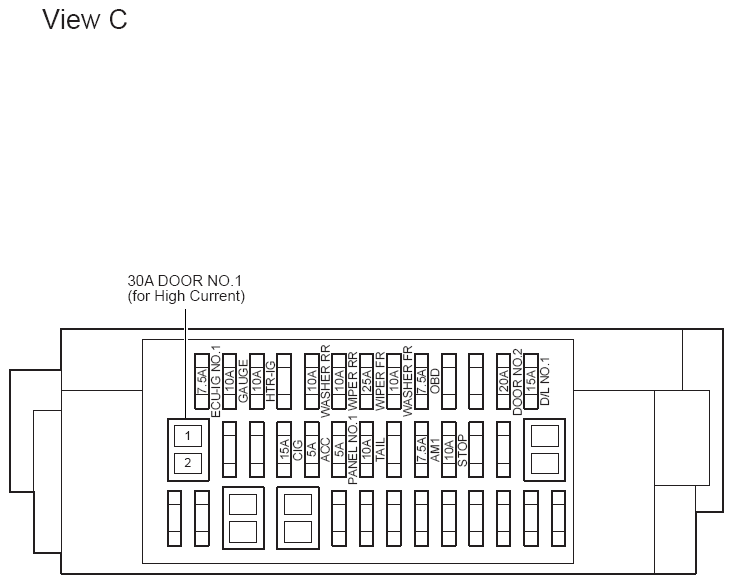

INSTRUMENT PANEL J/B FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 5A | ACC | ABS, TRAC and VSC |
| Air Conditioning | ||
| Audio System | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back Door Opener | ||
| Combination Meter | ||
| Door Lock Control | ||
| Headlight | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder | ||
| Power Window | ||
| Remote Control Mirror | ||
| Shift Lock | ||
| Wireless Door Lock Control | ||
| 5A | PANEL NO.1 | Illumination and Taillight |
| 7.5A | AM1 | CVT, Engine Control and Shift Indicator |
| Starting | ||
| 7.5A | ECU-IG NO.1 | ABS, TRAC and VSC |
| Air Conditioning | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back Door Opener | ||
| Combination Meter | ||
| Door Lock Control | ||
| EPS | ||
| Headlight | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder | ||
| Power Window | ||
| Shift Lock | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control | ||
| 7.5A | OBD | Data Link Connector 3 |
| 10A | GAUGE | ABS, TRAC and VSC |
| Back-Up Light | ||
| Charging | ||
| Cooling Fan | ||
| CVT, Engine Control and Shift Indicator | ||
| Seat Belt Warning | ||
| Turn Signal and Hazard Warning Light | ||
| 10A | HTR-IG | Air Conditioning |
| CVT, Engine Control and Shift Indicator | ||
| Mirror Heater and Rear Window Defogger | ||
| 10A | STOP | ABS, TRAC and VSC |
| CVT, Engine Control and Shift Indicator | ||
| Shift Lock | ||
| Stop Light | ||
| 10A | TAIL | CVT, Engine Control and Shift Indicator |
| Illumination and Taillight | ||
| 10A | WASHER FR | Front Wiper and Washer |
| 10A | WASHER RR | Rear Wiper and Washer |
| 10A | WIPER RR | Rear Wiper and Washer |
| 15A | CIG | Power Outlet |
| 15A | D/L NO.1 | Back Door Opener |
| Door Lock Control | ||
| Wireless Door Lock Control | ||
| 20A | DOOR NO.2 | Power Window |
| 25A | WIPER FR | Front Wiper and Washer |
| 30A | DOOR NO.1 | Power Window |
