Relay Block Assembly - Behind the Combination Meter

For additional information, refer to Figure.

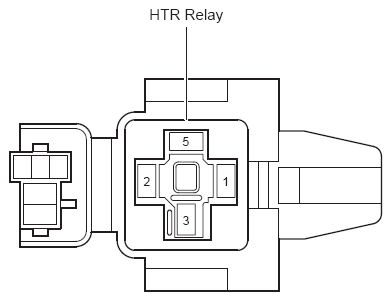

Fig 1: R/B Assembly Relay Identification
G08774603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
R/B RELAY IDENTIFICATION

RELAY DESCRIPTION
HTR Relay
