Inspection Procedure

  1. CHECK FUSE
    1. Inspect the ALT fuse and MAIN fuse in the FL block.

      Standard:

      Below 1 Ω

    2. Inspect the DOME fuse and AM2 fuse in the engine room R/B.

      Standard:

      Below 1 Ω

    3. Inspect the GAUGE fuse and AM1 fuse in the instrument panel junction

      Standard:

      Below 1 Ω

    1. NG : INSPECT FOR SHORT CIRCUIT IN HARNESS AND ALL COMPONENTS CONNECTED TO FUSE
    2. OK : Go to next step.
  2. INSPECT COMBINATION METER ASSY
    1. Measure the resistance according to the value (s) in the table below.

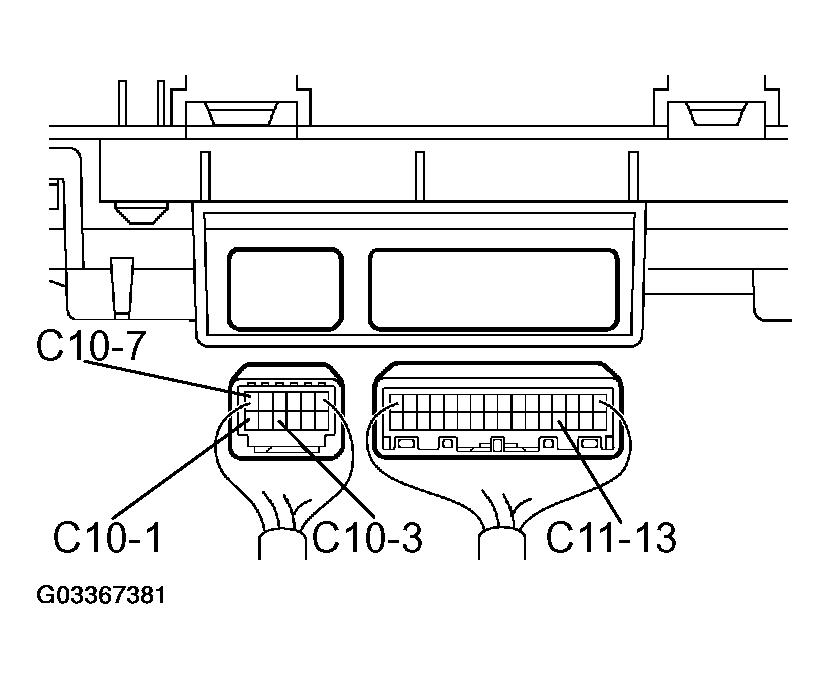

      Fig 1: Measuring Resistance & Voltage
      G03367381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      RESISTANCE SPECIFICATIONS

      Terminal No Condition Specified condition
      C10-3 - Body ground Always Below 1 Ω
    2. Measure the voltage according to the value (s) in the table below.

      Standard:

      VOLTAGE SPECIFICATIONS

      Terminal No Condition Specified condition
      C10-7 - Body ground Always 10 to 14 V
      C10-1 - Body ground Ignition switch ON 10 to 14 V
      C11-13 - Body ground Ignition switch ON 10 to 14 V
    1. NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK : REPLACE COMBINATION METER ASSY (See  OVERHAUL  )
