Combination Meter ASSY: Overhaul

HINT:

COMPONENTS: See COMPONENTS

NOTE: When disassembling the combination meter assy, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

REMOVE INSTRUMENT CLUSTER FINISH PANEL
1. Remove the 2 clips.

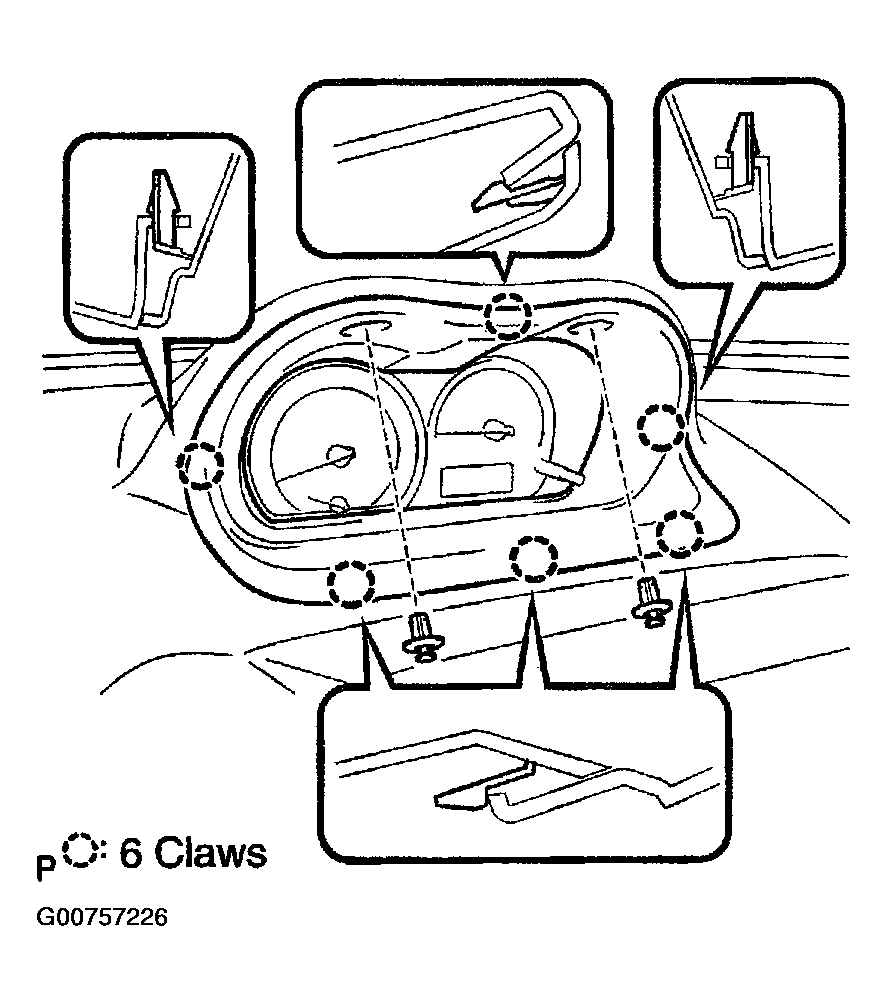

2. Disengage the 6 claws, and remove the instrument cluster finish panel.
Fig 1: Removing Instrument Cluster Finish Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSY

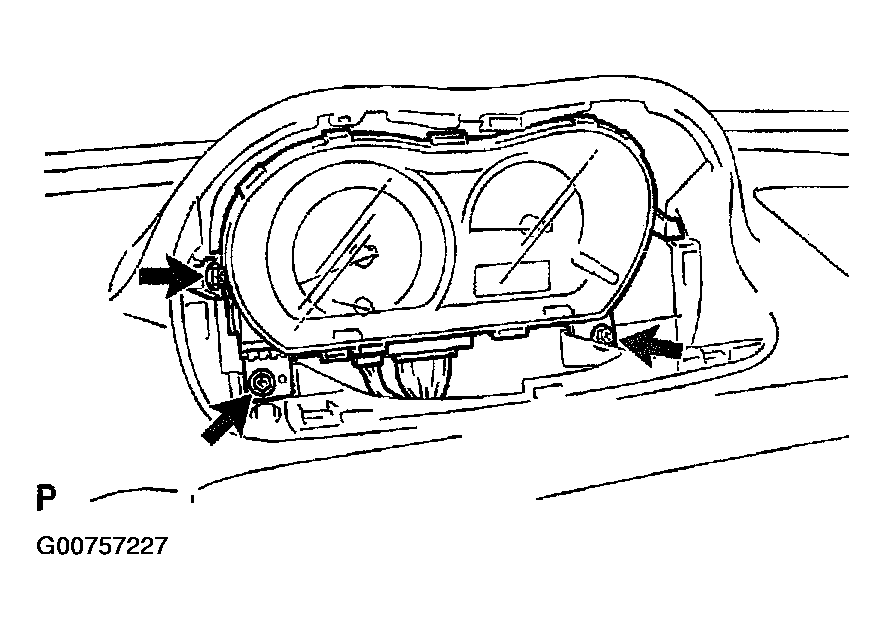

1. Remove the 3 screws.
2. Disconnect the connectors, and remove the combination meter assy.
Fig 2: Removing Combination Meter Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER CASE
1. Disengage the 7 claws, and remove the combination meter case.
Fig 3: Removing Combination Meter Case
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER GLASS

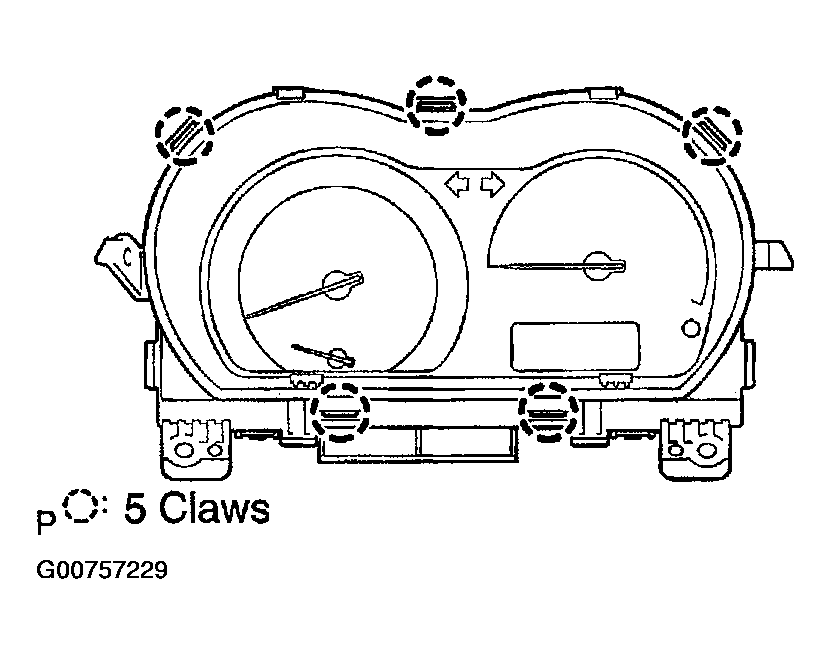

1. Disengage the 5 claws, and remove the combination meter glass.
Fig 4: Removing Combination Meter Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
