Radio Receiver ASSY: Replacement

NOTE: LOCATION: See LOCATION
  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 2 (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 1 (See  REPLACEMENT  )
  3. REMOVE HEATER CONTROL KNOB (See  REPLACEMENT  )
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CTR (See  REPLACEMENT  )
  5. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
    1. Remove the 4 bolts.

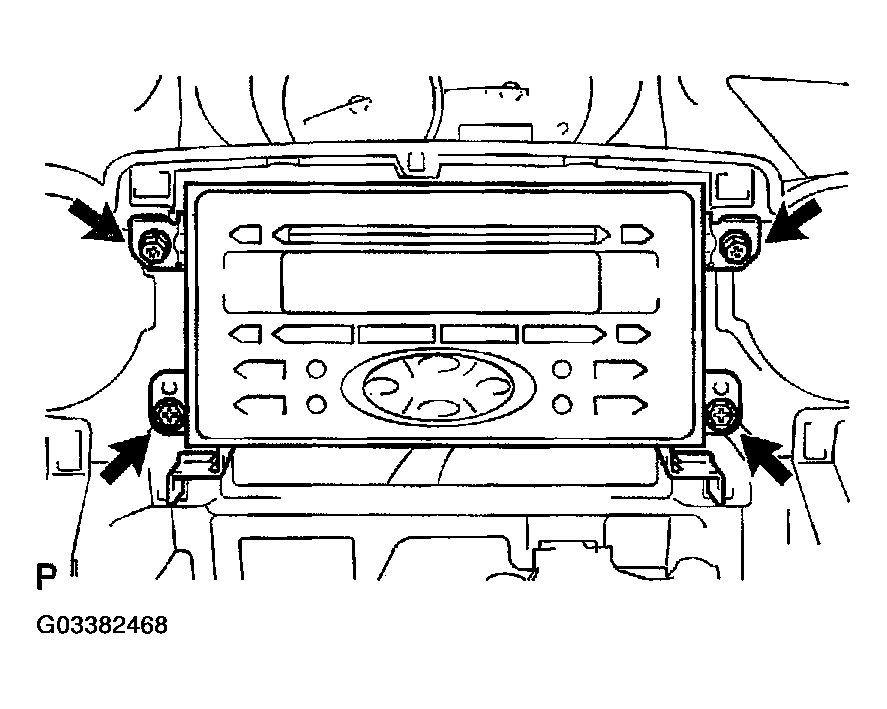

      2. Fig 1: Locating Bolts
      G03382468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Remove the radio receiver assembly w/ bracket.
  6. REMOVE RADIO BRACKET NO. 1
    1. Remove the 4 screws and the radio bracket No. 1.

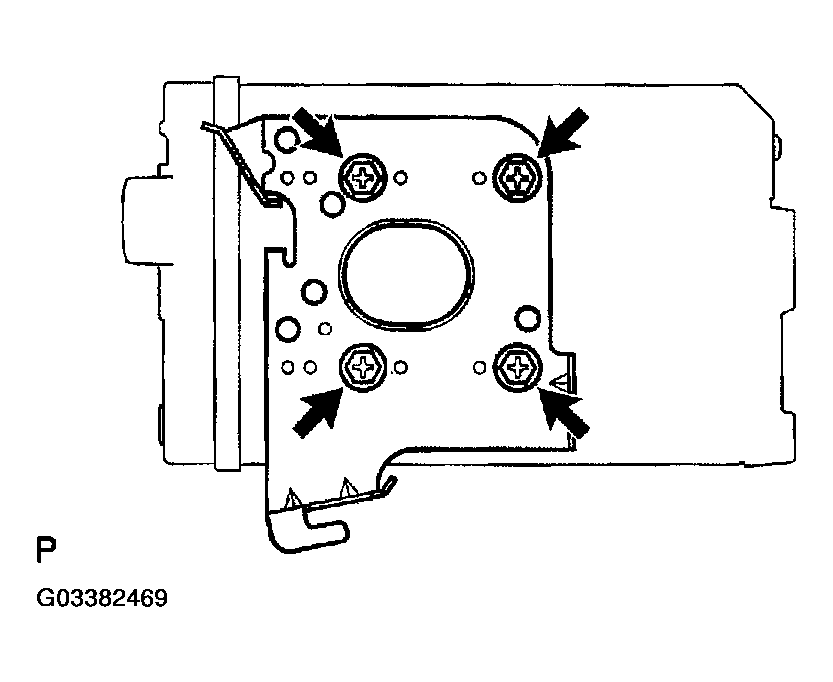

      Fig 2: Removing Radio Bracket No. 1
      G03382469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE RADIO BRACKET NO. 2
    1. Remove the 4 screws and the radio bracket No. 2.

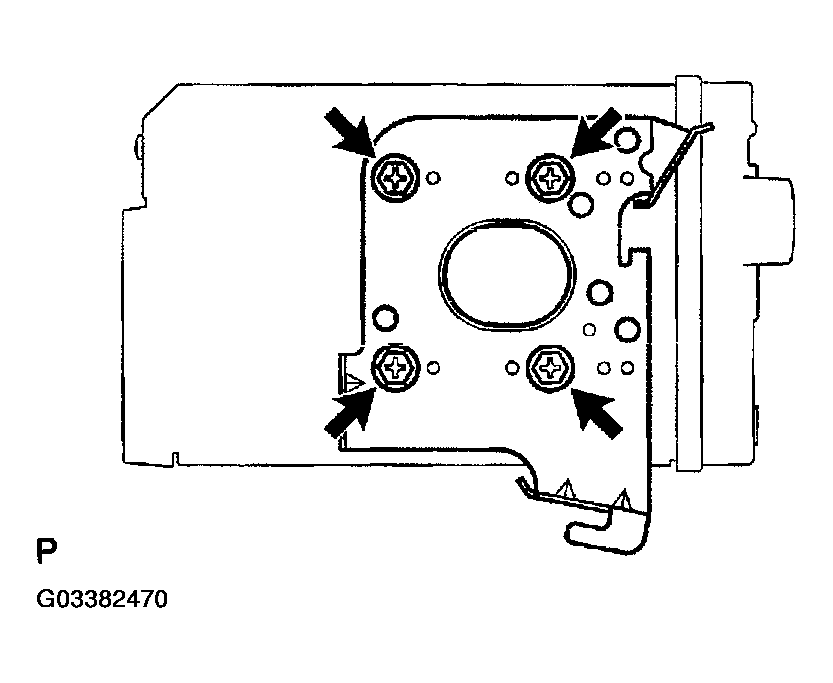

      Fig 3: Removing Radio Bracket No. 2
      G03382470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE RADIO RECEIVER ASSY
