Audio & Visual System: Location

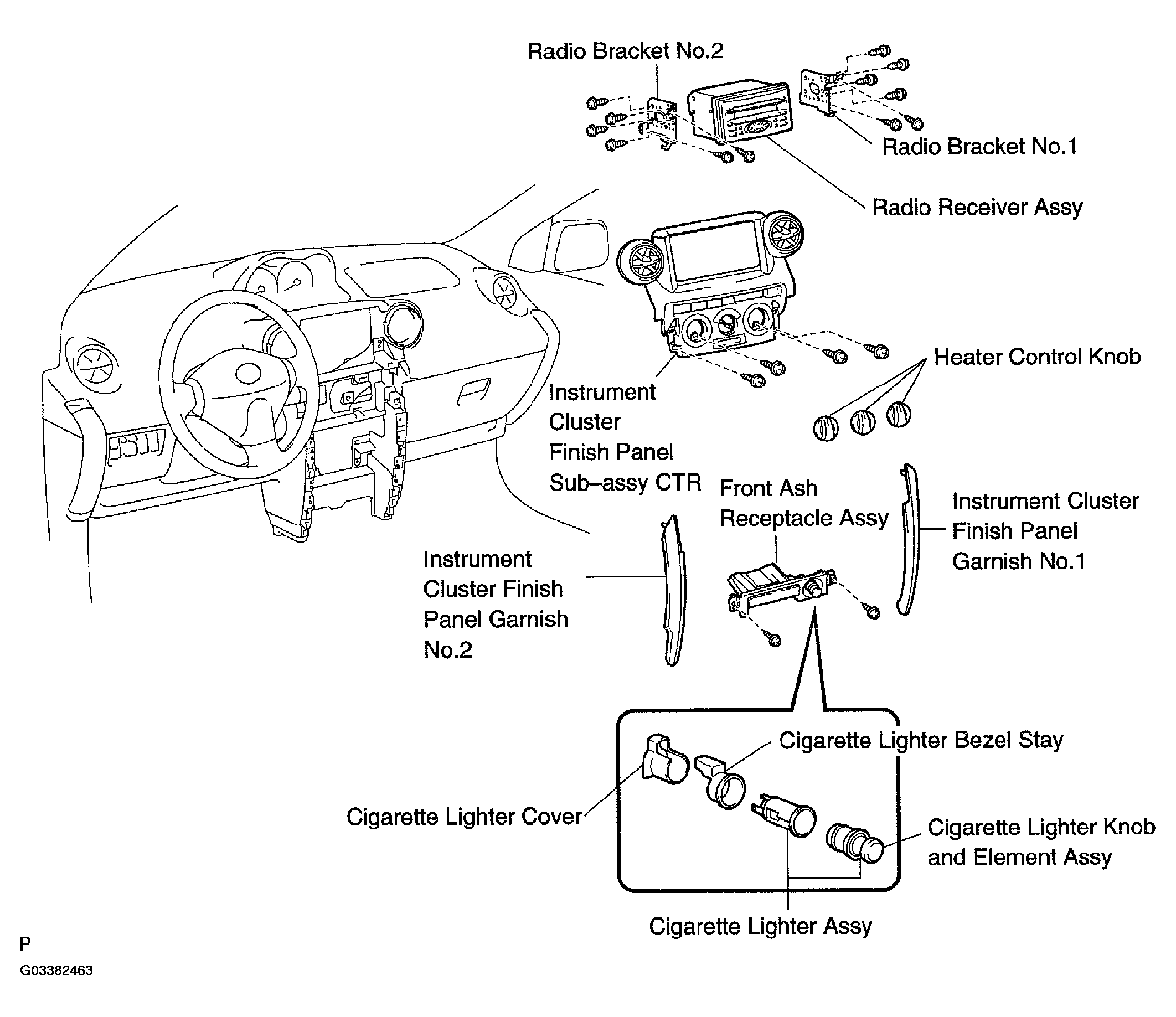

Fig 1: Exploded View Of Audio & Visual System
G03382463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

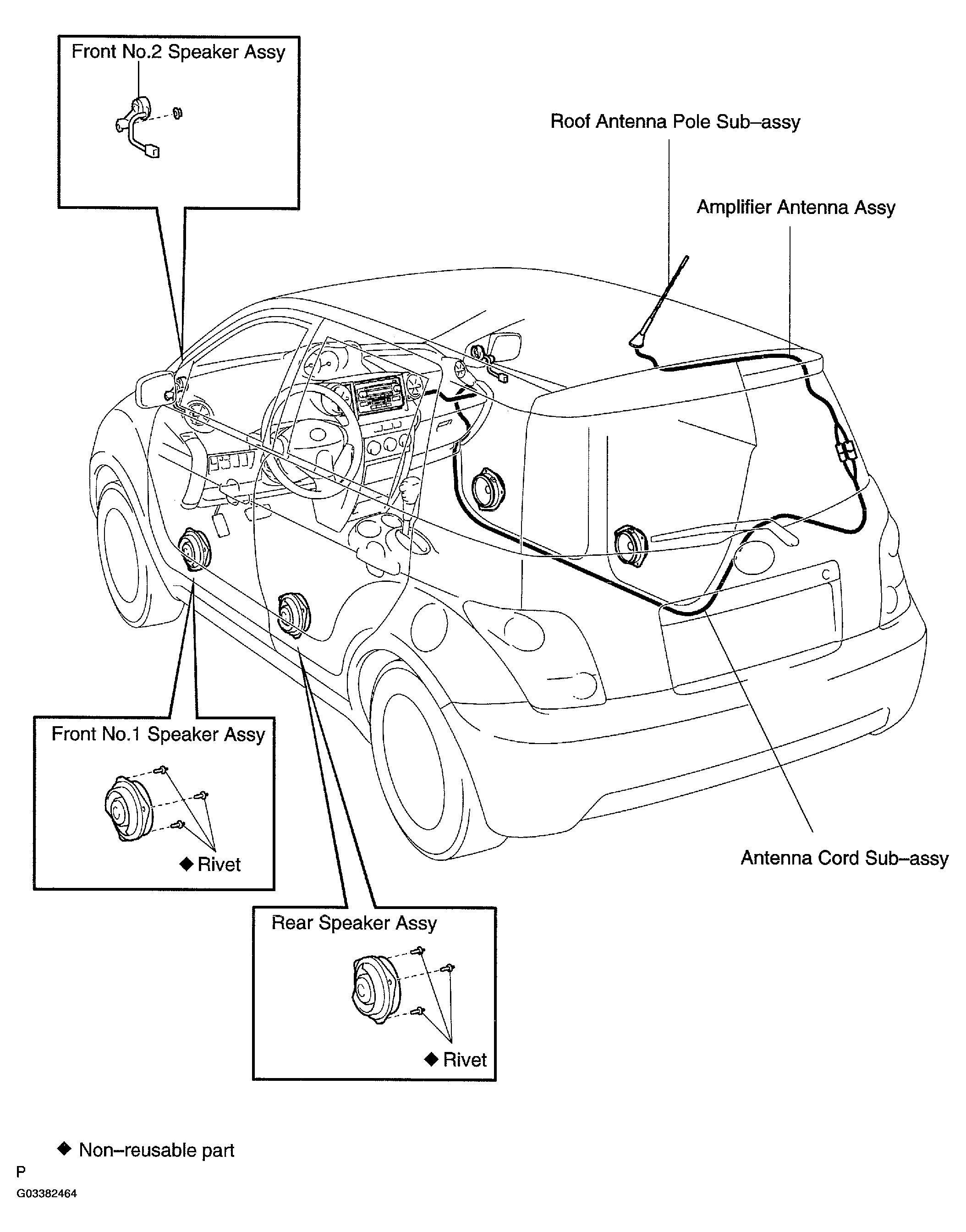

Fig 2: Locating Audio & Visual Components
G03382464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
