Cigarette Lighter ASSY: Replacement

NOTE: LOCATION: See LOCATION
  1. DISCONNECT BATTERY NEGATIVE TERMINAL (See  AIR BAG SAFETY PRECAUTIONS  )
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 2 (See  REPLACEMENT  )
  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 1 (See  REPLACEMENT  )
  4. REMOVE FRONT ASH RECEPTACLE ASSY (See  REPLACEMENT  )
  5. REMOVE CIGARETTE LIGHTER COVER
    1. Disengage the 2 claws and remove the cigarette lighter cover.

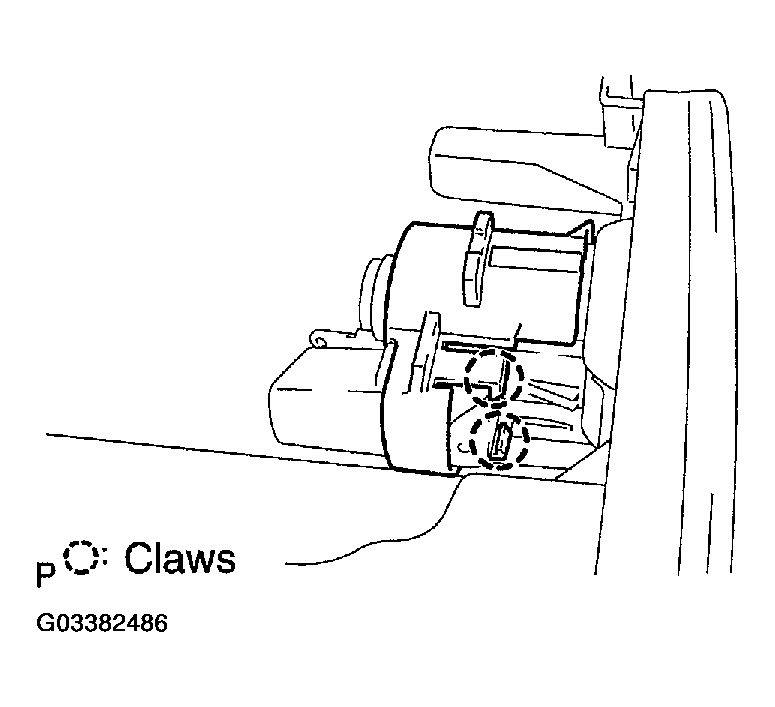

      Fig 1: Removing Cigarette Lighter Cover
      G03382486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CIGARETTE LIGHTER ASSY
    1. Remove the cigarette lighter knob and element assy.

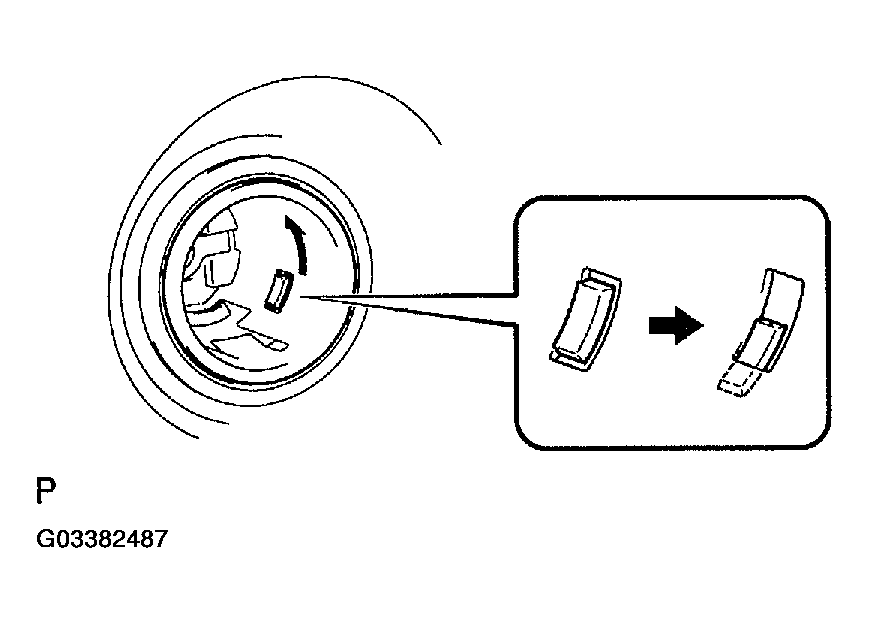

      2. Fig 2: Removing Cigarette Lighter Knob & Element Assy
      G03382487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the socket in the direction as shown in the illustration, disengage the claw between the socket and the cigarette lighter bezel stay, and pull out the socket.
    3. Align the socket with the notch on the cigarette lighter bezel stay, and remove the cigarette lighter assy.

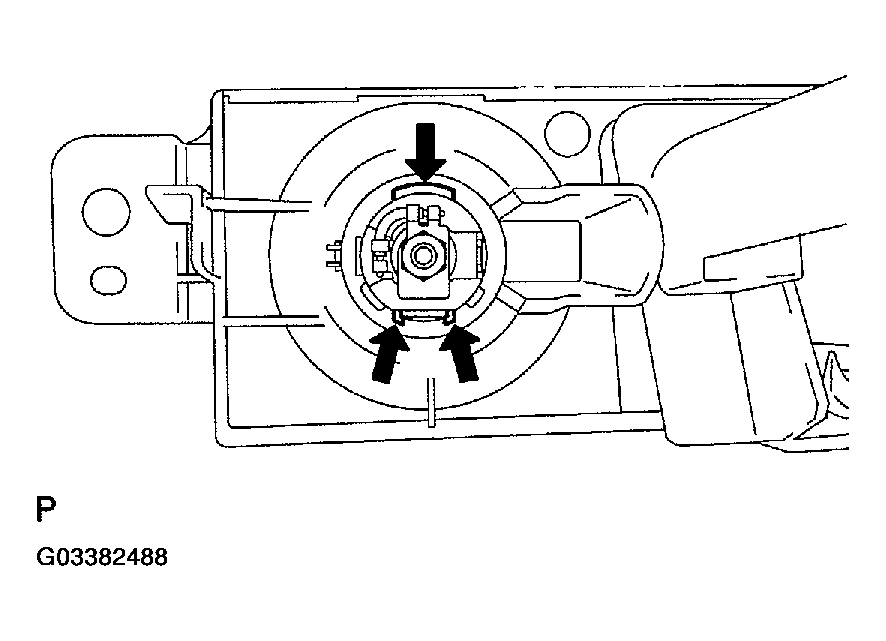

      Fig 3: Aligning Socket With Notch On Cigarette Lighter Bezel Stay
      G03382488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CIGARETTE LIGHTER ASSY
    1. Align the socket with the notch on the cigarette lighter bezel stay and push the cigarette lighter assy in as hard as possible.
    2. Install the cigarette lighter knob and element assy.
