Rear Compartment Lift Window Replacement

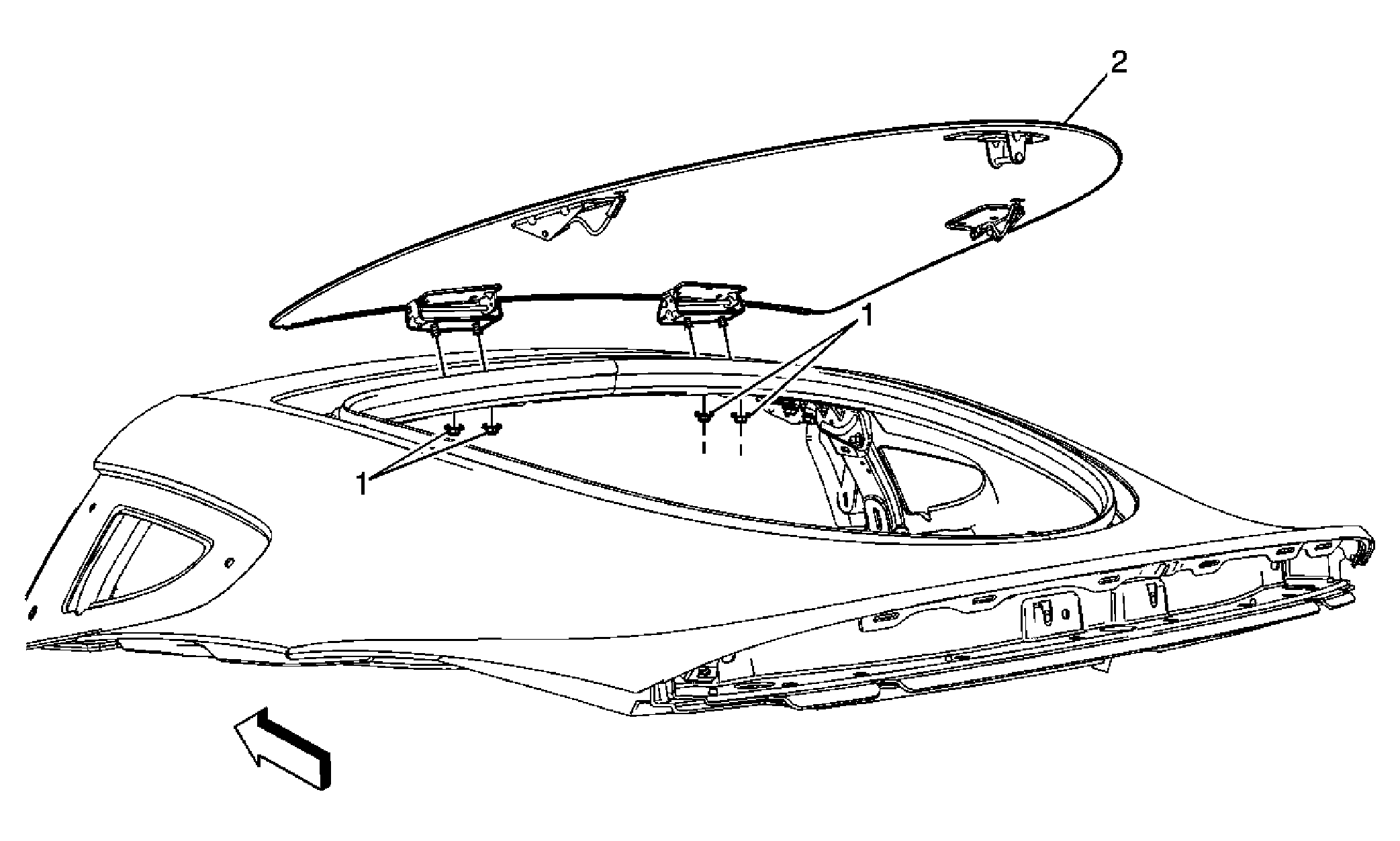

Fig 1: Identifying Rear Compartment Lift Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the headlining rear trim panel. Refer to Headlining Rear Trim Panel Replacement (Coupe) Remove the rear compartment lift window struts. Refer to Rear Compartment Lift Window Strut Replacement .
1	Rear Compartment Lift Window Fastener (Qty :4) CAUTION: Refer to Fastener Caution . Procedure: Disconnect the electrical connector. Tighten: 10 N.m (89 lb ).
2	Rear Compartment Lift Window Procedure: Check the rear compartment lift window for proper alignment before closing. Refer to Rear Compartment Lift Window Latch Replacement .

Callout

Component Name

Preliminary Procedures

Remove the headlining rear trim panel. Refer to Headlining Rear Trim Panel Replacement (Coupe)
Remove the rear compartment lift window struts. Refer to Rear Compartment Lift Window Strut Replacement .

Rear Compartment Lift Window Fastener (Qty :4)

CAUTION: Refer to Fastener Caution .

Procedure:
Disconnect the electrical connector.

Tighten: 10 N.m (89 lb ).

Rear Compartment Lift Window
Procedure:
Check the rear compartment lift window for proper alignment before closing. Refer to Rear Compartment Lift Window Latch Replacement .
