Rear Compartment Lift Window Latch Replacement

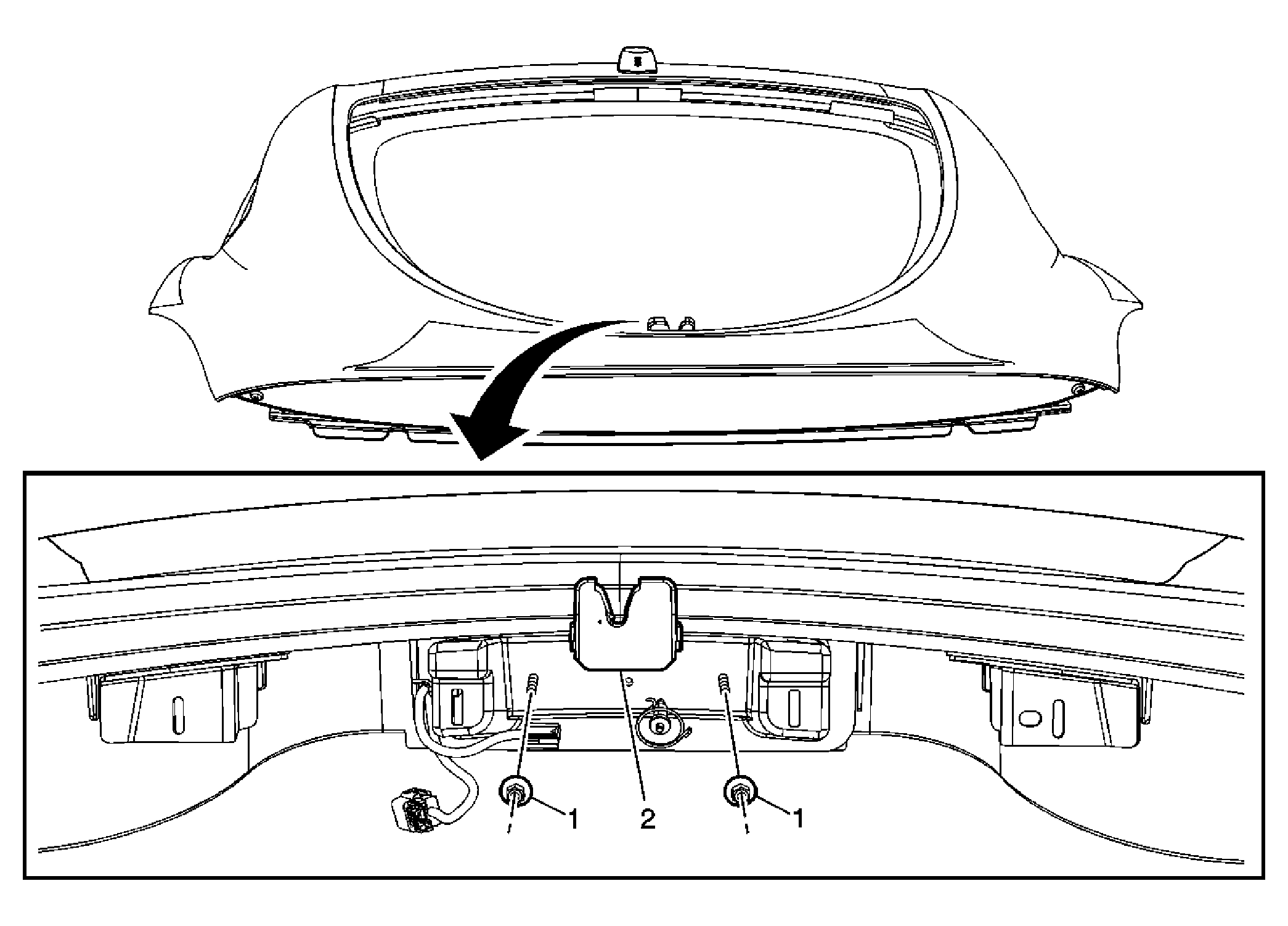

Fig 1: Identifying Rear Compartment Lift Window Latch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement (Coupe) .
1	Rear Compartment Lift Window Latch Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure:  Disconnect the electrical connector. Tighten:  10 N.m (89 lb in)
2	Rear Compartment Lift Window Latch
