Wiper Transmission Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

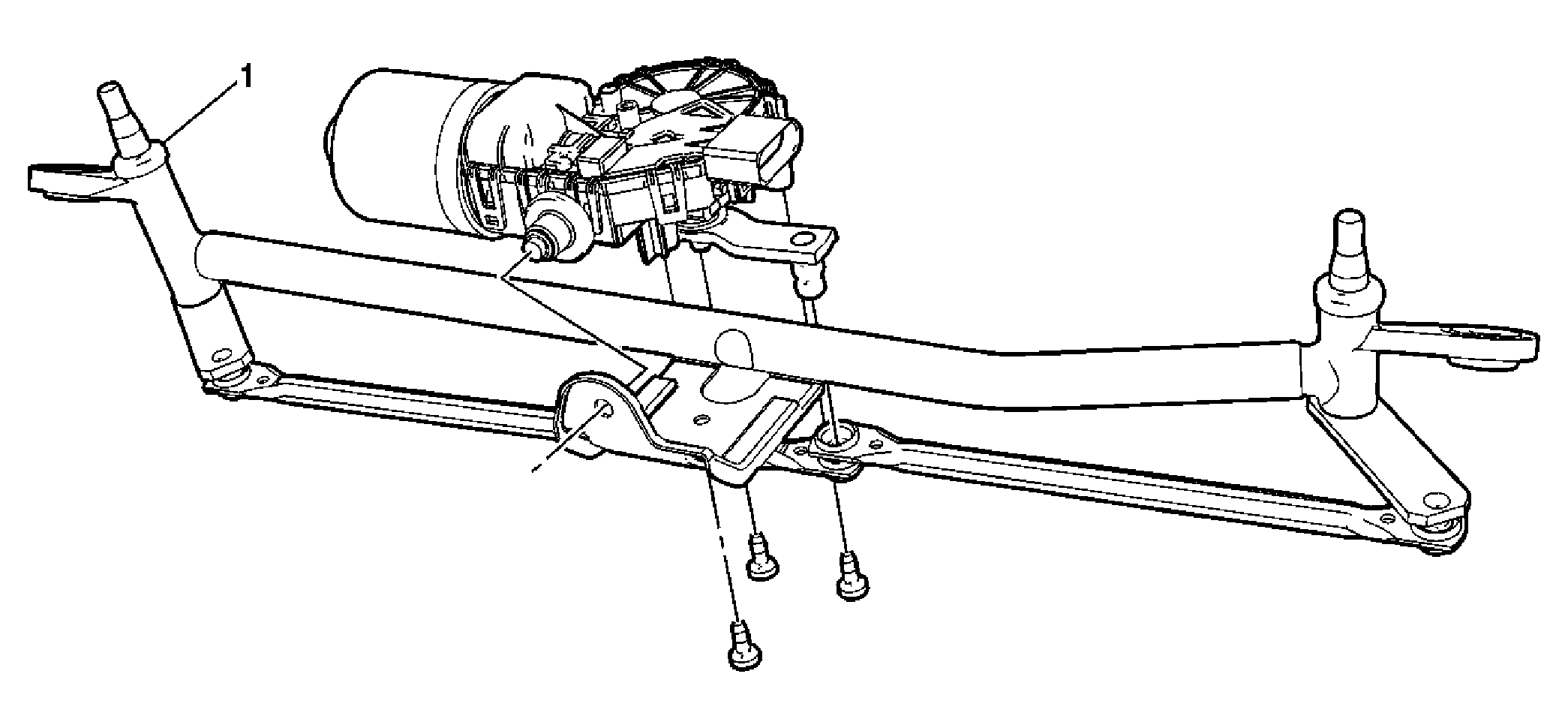

Fig 1: Identifying Wiper Transmission

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the windshield wiper motor. Refer to Wiper Motor Replacement .
1	Windshield Washer Transmission Assembly
