Radio Front Floor Console Speaker Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

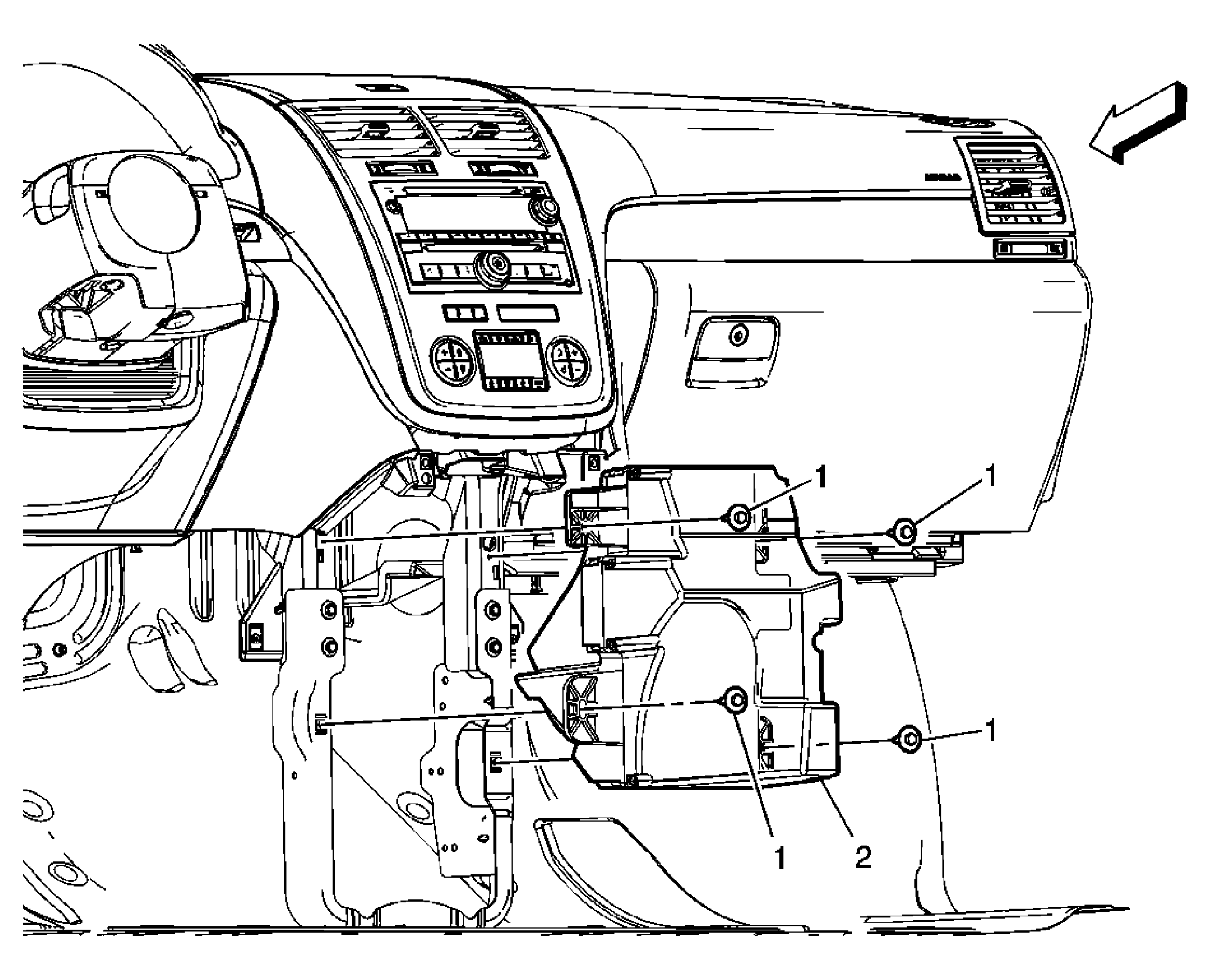

Fig 1: Locating Radio Front Floor Console Speaker
GM1846145Courtesy of GENERAL MOTORS CORP.
Radio Front Floor Console Speaker Replacement

Callout Component Name
Preliminary Procedure:
Remove the front floor console assembly. Refer to Front Floor Console Replacement .
1 Radio Front Floor Console Speaker Screws (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  9 N.m (80 lb in)
2 Radio Front Floor Console Speaker Assembly
Procedure:
Disconnect the electrical connector.
