Front Floor Console Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

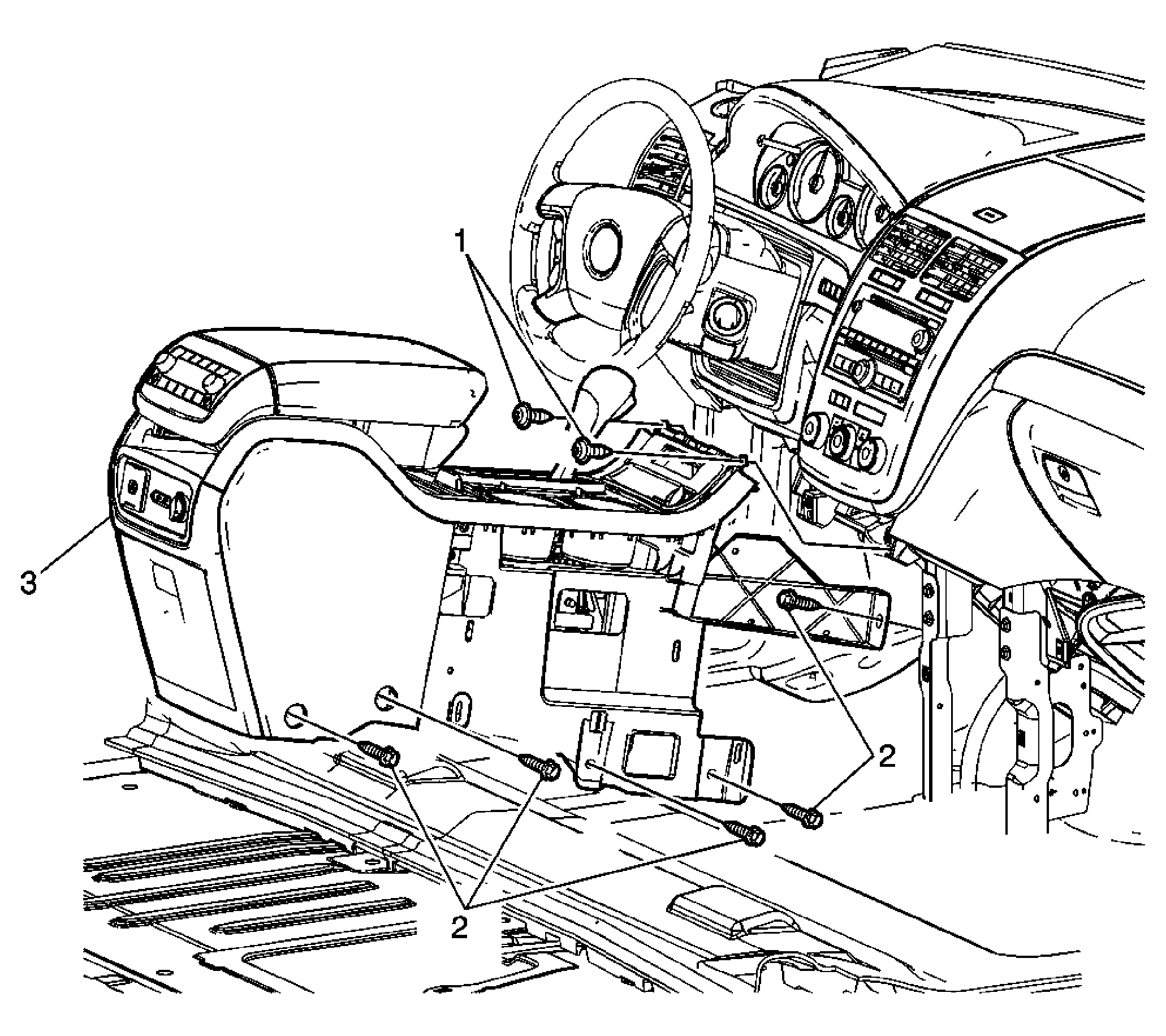

Fig 1: View Of Front Floor Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement . Remove the right and left front floor console extension panels. Refer to Front Floor Console Extension Panel Replacement - Right Side and Front Floor Console Extension Panel Replacement - Left Side . Disconnect the automatic transmission range selector lever cable. Refer to Automatic Transmission Range Selector Lever Cable Replacement .
1	Front Floor Console Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Floor Console Bolt (Qty: 10) Tighten: 9 N.m (80 lb in)
3	Front Floor Console Assembly Procedure Note location and routing of the front floor console wiring harness prior to removal of the front floor console assembly to ensure proper reinstallation. Disconnect the electrical connectors. With the aid of an assistant remove the console assembly from the vehicle. When replacing the front floor console, transfer all necessary components.
