Range Selector Displays Incorrect Range: Notes

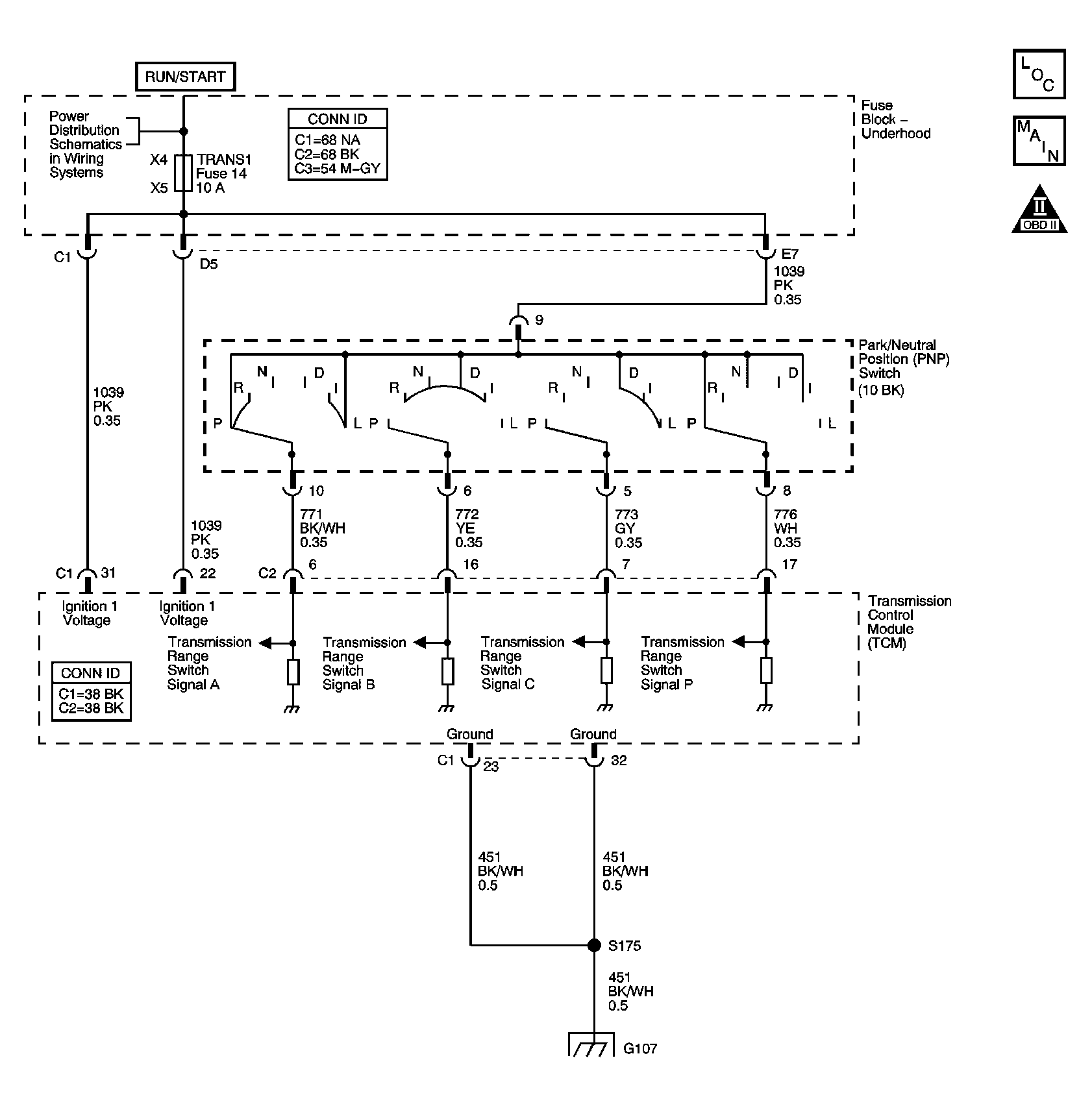

Fig 1: TR Switch Circuit

GM1340812

Courtesy of GENERAL MOTORS CORP.
