Oil Level Indicator Tube Replacement

WARNING: This page is about a different variant/trim than selected.

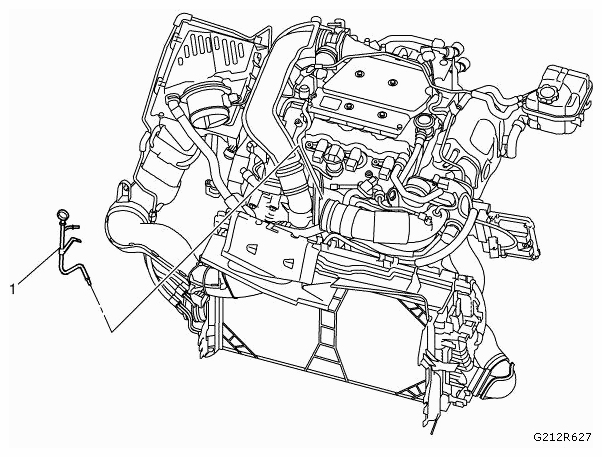

Fig 1: Identifying Oil Level Indicator Tube

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the fuel injector sight shield. Refer to Upper Engine Cover Removal . Remove the air cleaner outlet duct. Refer to AIR CLEANER OUTLET DUCT REPLACEMENT .
1	Oil Level Indicator and Tube Procedure Remove the ventilation hose from the oil level indicator tube. Remove the oil level indicator and tube. Refer to OIL LEVEL INDICATOR AND TUBE REMOVAL (LAU OR LBW) . Install the oil level indicator and tube. Refer to Oil Level Indicator and Tube Installation (LAU) .
