Battery Negative Cable Disconnection and Connection

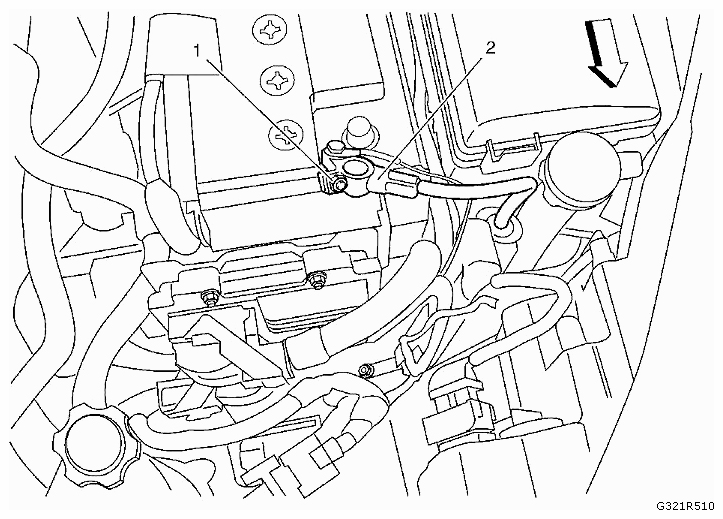

Fig 1: Identifying Battery, Negative Cable And Fastener
G09435142Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
See BATTERY DISCONNECT WARNING
Preliminary Procedure
Switch the ignition OFF.
1 Battery, Negative Cable, Fastener
Refer to FASTENER CAUTION .
Tighten
4.5 Nm (39.8 lb in)
2 Battery, Negative Cable
