Dimmer Switch Replacement

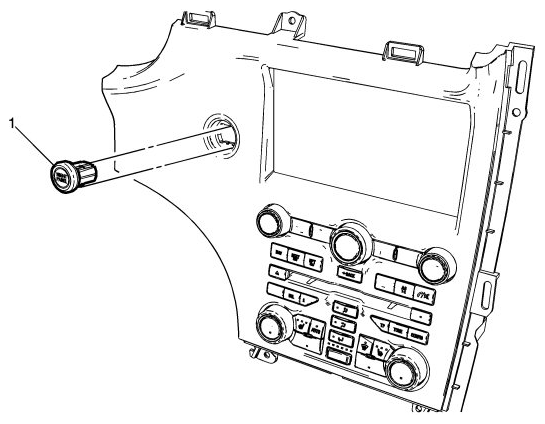

Fig 1: Removing Instrument Panel Lamp Dimmer Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures Remove the radio control assembly. Refer to RADIO CONTROL ASSEMBLY REPLACEMENT .
1	Instrument Panel Lamp Dimmer Switch Procedure Depress the tabs on the switch to release.
