Radio Control Assembly Replacement

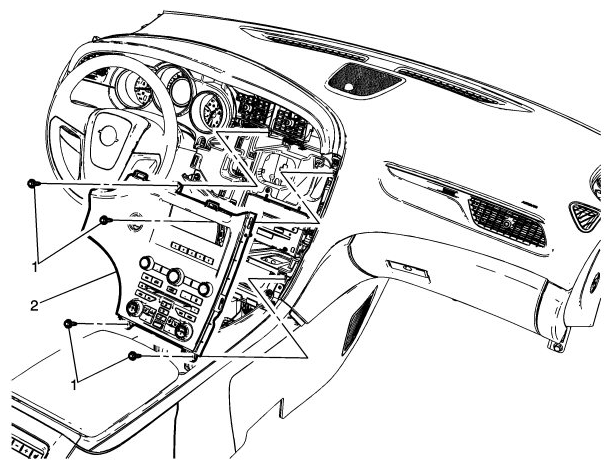

Fig 1: Identifying Radio Control Assembly And Mounting Screws
G09401902Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
  1. Remove INSTRUMENT PANEL CENTER AIR OUTLET
  2. Remove DRIVER KNEE BOLSTER PANEL
  3. Remove INSTRUMENT PANEL LOWER CENTER TRIM PANEL
1 Radio Control Screws (Qty: 4)
Refer to CAUTION: RETAINER
2 Radio Control Assembly
Procedure
  1. Disconnect the electrical connectors.
  2. When replacing the radio control assembly, transfer all necessary components.
  3. Refer to CONTROL MODULE REFERENCES for programming and setup information.
