Headlamp Control Module Replacement

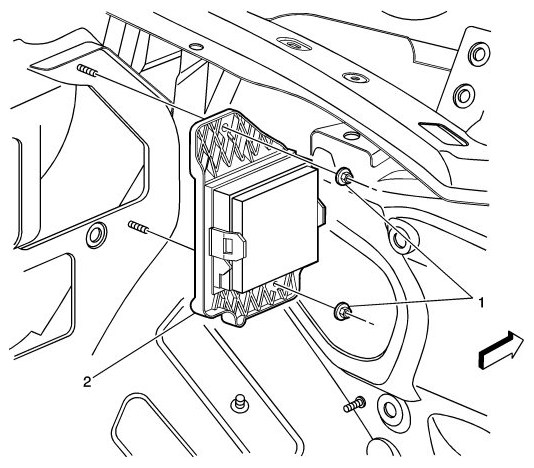

Fig 1: Removing Headlamp Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures Remove the body control module bracket. Refer to BODY CONTROL MODULE BRACKET REPLACEMENT .
1	Headlamp Control Module Nuts (Qty: 2) Refer to CAUTION: RETAINER Tighten 6 Nm (53 lb in)
2	Headlamp Control Module Procedure Disconnect the electrical connectors. Refer to CONTROL MODULE REFERENCES for programming and set-up procedures.
