Body Control Module Bracket Replacement

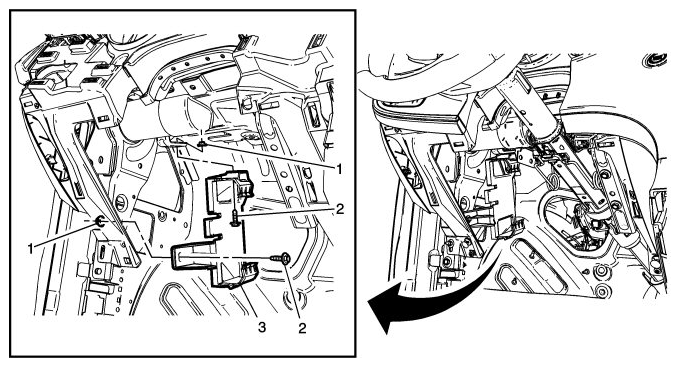

Fig 1: Identifying Body Control Module Bracket, Mounting Bolts And Nuts
G09403374Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
Remove the body control module. Refer to BODY CONTROL MODULE REPLACEMENT .
1 Body Control Module Bracket Nuts (Qty: 2)
Refer to CAUTION: RETAINER .
2 Body Control Module Bracket Bolts (Qty: 2)
Refer to CAUTION: RETAINER .
Tighten
9 N m (80 lb in)
3 Body Control Module Bracket
