Body Control Module Replacement

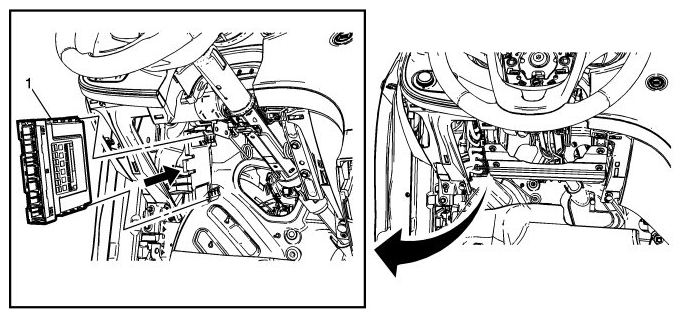

Fig 1: Removing Instrument Panel Driver Knee Bolster Energy Absorber
G09403373Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
Remove the instrument panel driver knee bolster energy absorber. Refer to INSTRUMENT PANEL DRIVER KNEE BOLSTER ENERGY ABSORBER REPLACEMENT
1 Body Control Module
Procedure
  1. Disconnect the electrical connectors.
  2. Release tab to remove the body control module from the bracket.
  3. Reprogram the module if replaced. Refer to CONTROL MODULE REFERENCES .
