Propeller Shaft Flange Replacement

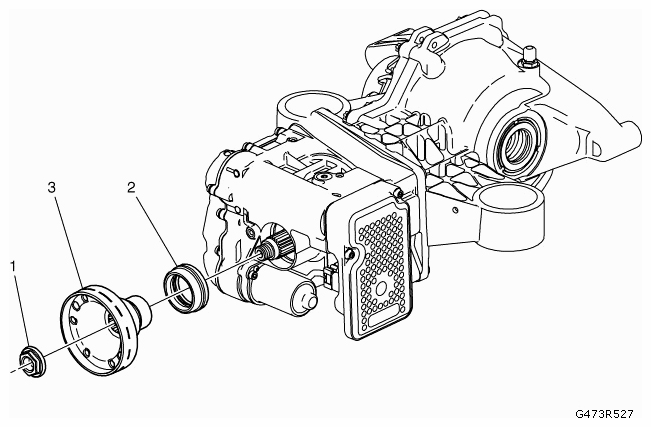

Fig 1: Identifying Differential Clutch, Seal Propeller Shaft Flange And Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT .
1	Propeller shaft Flange Nut Refer to FASTENER CAUTION . Procedure Use DT-49048 fixture to hold the flange when tightening. Tighten 100 Nm (74 lb ft) Special Tools DT-49048 Holding Fixture For equivalent regional tools, refer to SPECIAL TOOLS .
2	Differential Clutch Seal Procedure Use a new seal. Refer to REAR OUTPUT SHAFT SEAL REPLACEMENT .
3	Propeller Shaft Flange Procedure Inspect the oil level. Refer to DIFFERENTIAL CLUTCH OIL INSPECTION .
