Trailing Arm Bushing Replacement

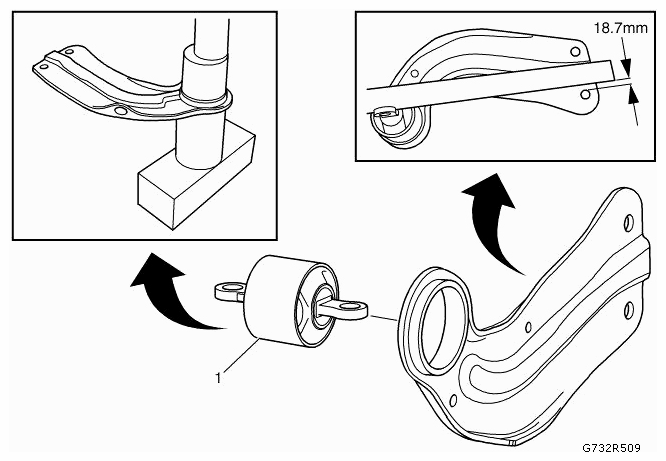

Fig 1: Identifying Trailing Arm Bushing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the rear tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION . Remove the trailing arm. Refer to TRAILING ARM REPLACEMENT .
1	Trailing Arm Bushing Procedure Adjust bushing 18.7 mm from center of hole, when parallel to bushing console with the kit CH-49381. Special Tools CH-49381 Remover/Installer Kit For equivalent regional tools, refer to SPECIAL TOOLS .
