Trailing Arm Replacement

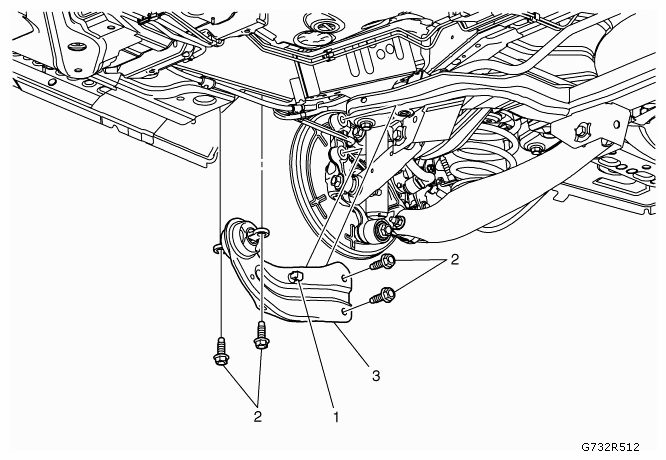

Fig 1: Identifying Trailing Arm, Clip And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the rear tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
1	Trailing Arm Clip Procedure Remove cable and pipe from clip.
2	Trailing Arm Fastener (Qty: 4) Refer to FASTENER CAUTION . Procedure Install NEW fasteners. Tighten 150 Nm (111 lb ft) + 30 degrees
3	Trailing Arm
