Front Turn Signal Lamp Bulb Replacement

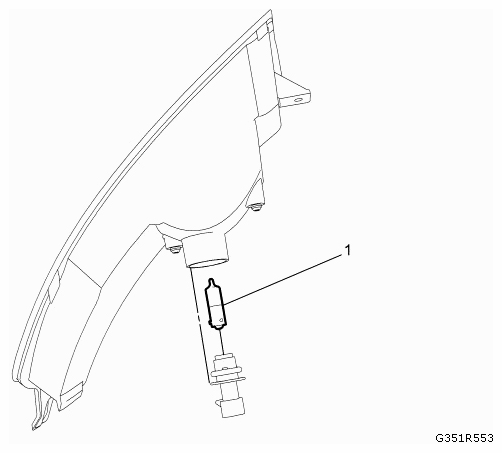

Fig 1: Identifying Front Turn Signal Lamp Bulb

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Refer to HALOGEN BULB WARNING . WARNING: The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system. WARNING: The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns: Never open the high intensity discharge system ballast or the arc tube assembly starter. Never probe between the high intensity discharge system ballast output connector and the arc tube assembly. Preliminary Procedure  Remove the front turn signal lamp. Refer to FRONT SIDE TURN SIGNAL LAMP REPLACEMENT .
1	Front Turn Signal Lamp Bulb Procedure  Loosen the lamp by turning the connection device clockwise. Turn counter-clockwise to install.
